5.4 Details of Function Codes
5-232

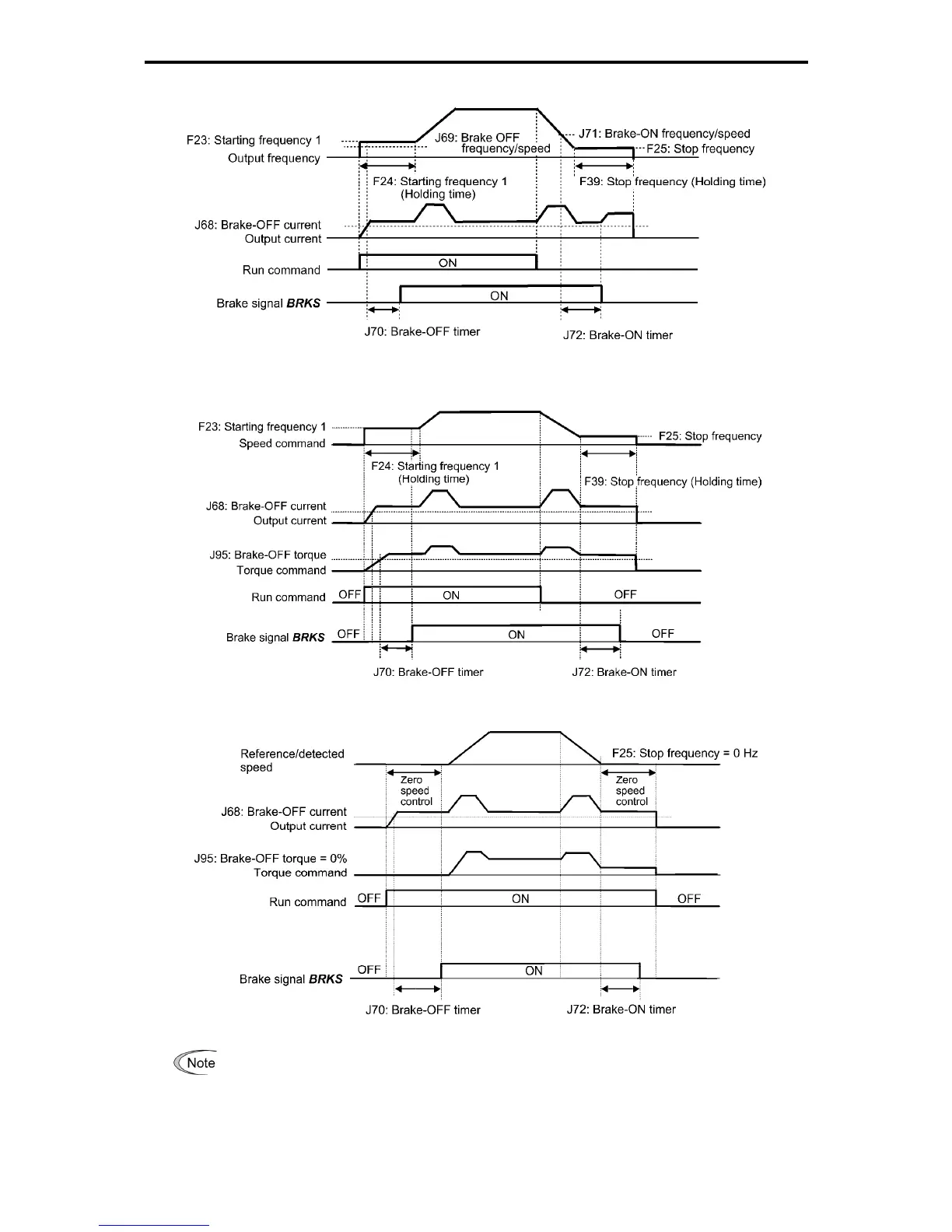

Operation time chart under V/f control
Fig. 5.4-114
Operation time chart under vector control without speed sensor
Fig. 5.4-115
Operation time chart under vector control with speed sensor
Fig. 5.4-116
- If zero speed control is enabled under vector control with speed sensor, set J95 Brake-OFF
torque = 0%.
- After releasing the brake (BRKS ON), operating for a while, and then activating the brake
(BRKS OFF) to stop the motor, if you want to release the brake (BRKS ON), turn the inverter's
run command OFF and then ON.
