Configuration sample 4: Pattern operation
Driving while switching the set frequency and acceleration/deceleration time at specified time intervals is
called "Pattern operation." The configuration that enables pattern operation in the customizable logic is as
follows.

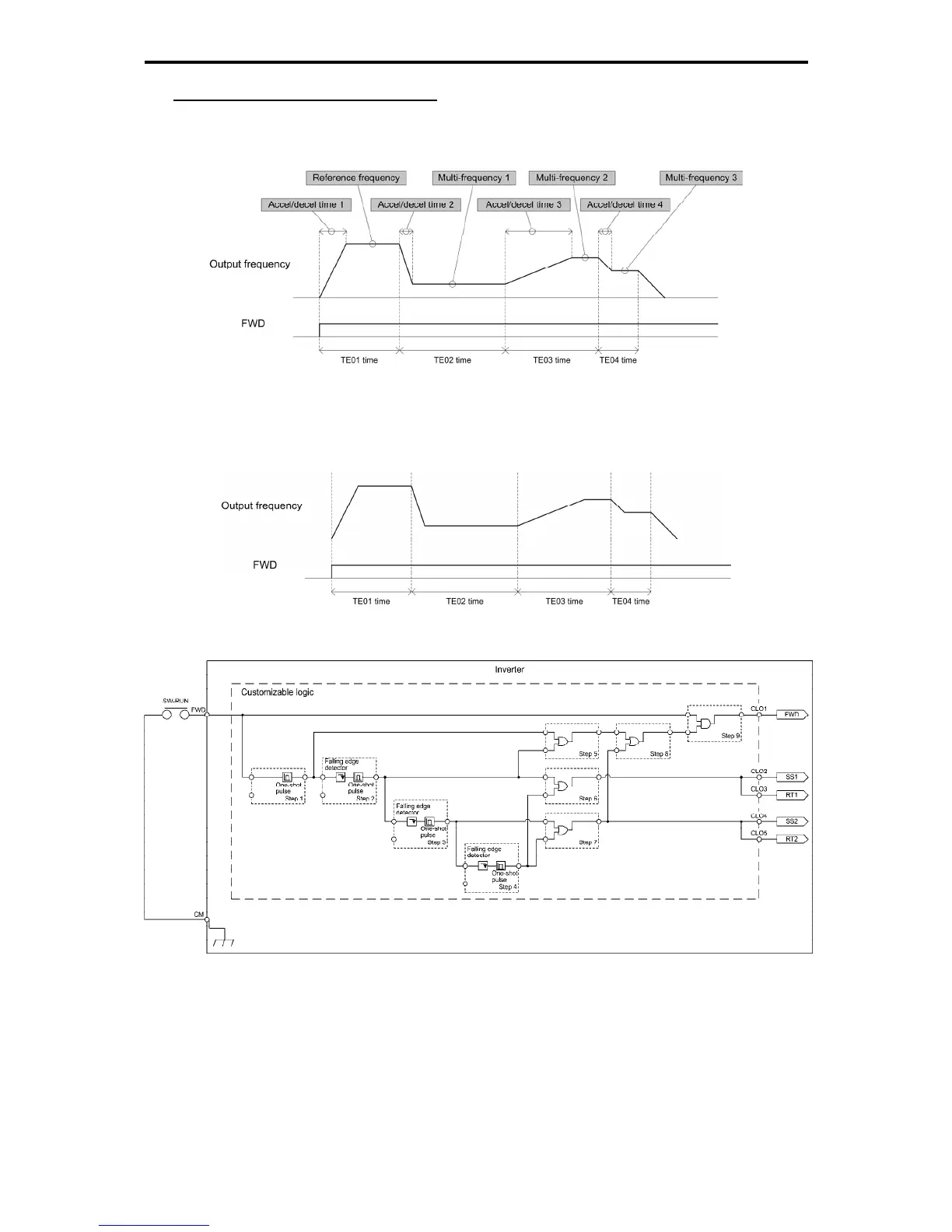

Fig. 5.4-132 Application setting of pattern operation for each stage
(1) A single cycle of pattern operation and stop
This sample carries out a cycle of the specified pattern operation and stops the inverter output.
Fig. 5.4-133 Timing chart of pattern operation (stop after one cycle)
Fig. 5.4-134 Customizable logic configuration for pattern operation (stop after one cycle)
