11.2 Selecting Wires and Crimp Terminals
11-13
Chapter 11 SELECTING PERIPHERAL EQUIPMENT

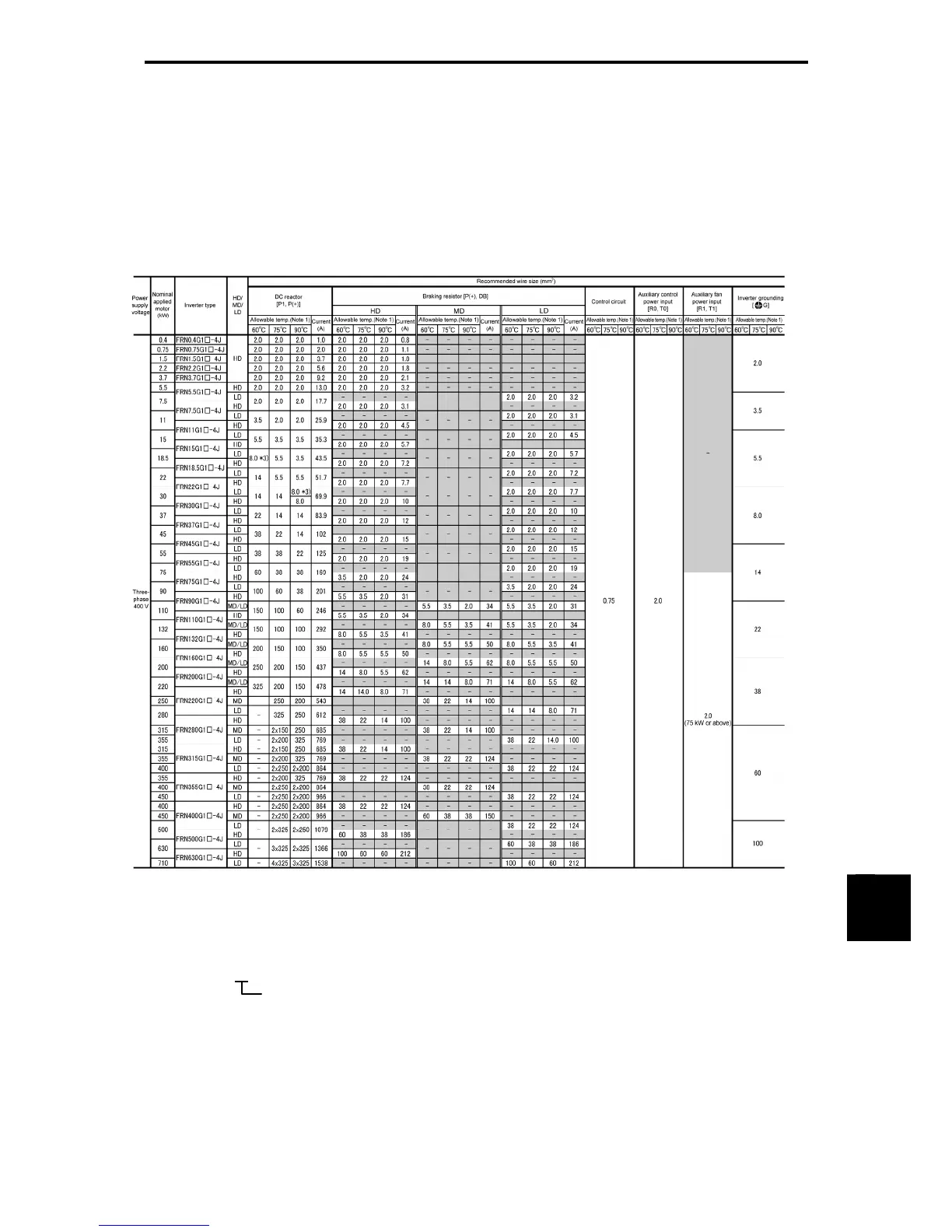

Table 11.2-3 Wire Size (for DC reactor, braking resistor, control circuits, and inverter grounding)
(Continued)
HD (High Duty) mode: Heavy duty load applications
MD (Medium Duty) mode: Medium duty load applications
LD (Low Duty) mode: Light duty load applications
Note 1: Assuming the use of aerial wiring (without rack or duct):600 V class of vinyl-insulated IV wires for
60°C, 600 V class of polyethylene-insulated HIV wires for 75°C, and 600 V cross-linked
polyethylene insulated wires for 90°C.
Note 2: A box () in the above table replaces an alphabetic letter depending on the enclosure.
S (Basic type), E (EMC filter built-in type), H (DC reactor built-in type)
*3) Use the crimp terminal model No. 8-L6 manufactured by JST Mfg.Co., Ltd., or equivalent.
*1), *2), *4) to *7) Not applicable.
If environmental requirements such as power supply voltage and surrounding temperature differ from
those listed above, select wires suitable for your system, referring to Table 11.2-1 and Appendix F
"Allowable Current of Insulated Wires."
