11.3 Peripheral Equipment
11-18

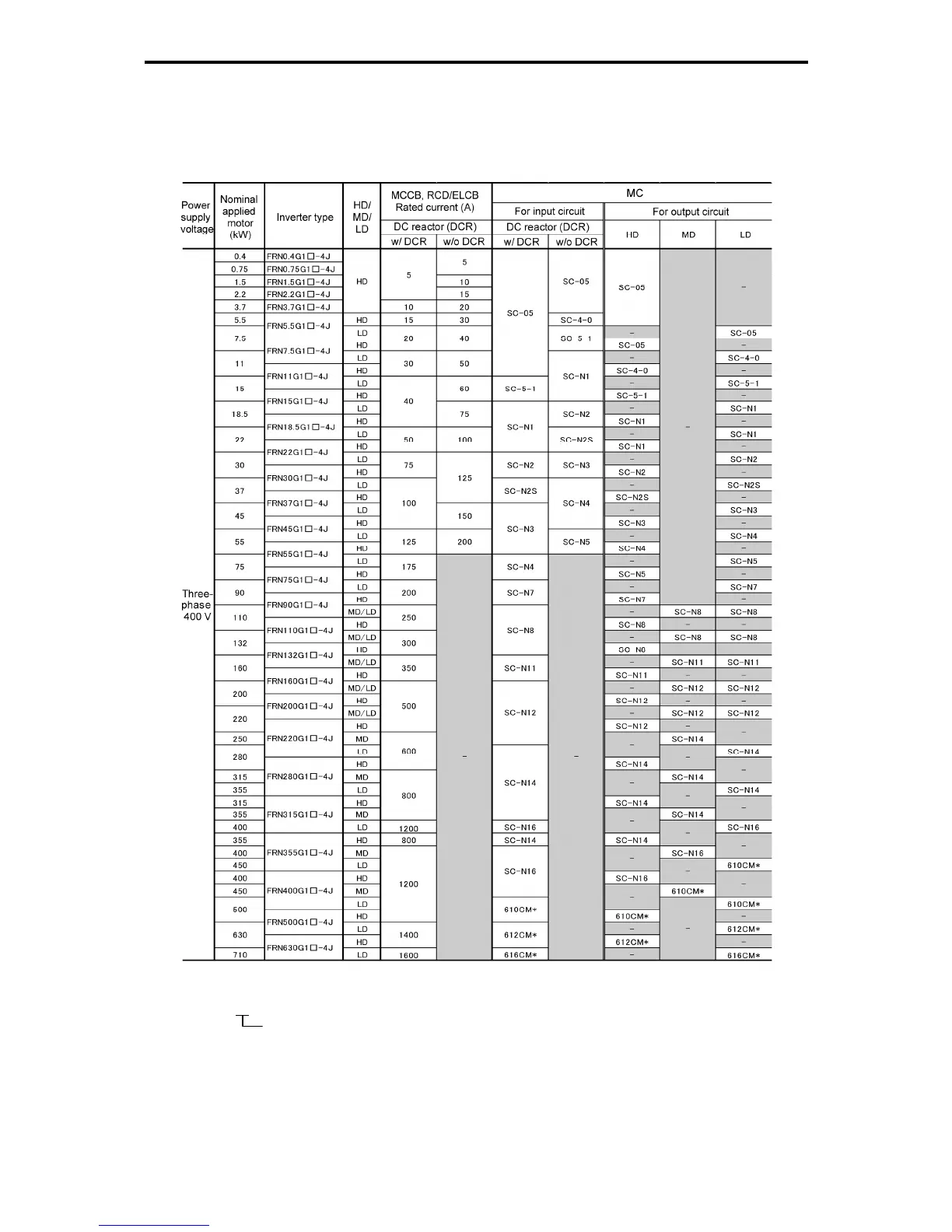

Table 11.3-1 Molded Case Circuit Breaker (MCCB), Residual-Current-Operated Protective Device (RCD)/Earth
Leakage Circuit Breaker (ELCB), Magnetic contactor (MC) (Continued)
HD (High Duty) mode: Heavy duty load applications
MD (Medium Duty) mode: Medium duty load applications
LD (Low Duty) mode: Light duty load applications
* 610CM, 612CM and 616CM: Manufactured by Aichi Electric Works Co., Ltd.
Note: A box () in the above table replaces an alphabetic letter depending on the enclosure.
S (Basic type), E (EMC filter built-in type), H (DC reactor built-in type)
• Install the MCCB or RCD/ELCB at the input side of the inverter. They cannot be installed at the output side of the
inverter.
• The above table lists the rated current of MCCBs and RCD/ELCBs to be used in the power control panel with an
internal temperature of lower than 50°C. Select an MCCB and/or RCD/ELCB suitable for the actual short-circuit
breaking capacity needed for your power systems.
• When selecting an MC, the HIV wire (capable of 75°C) is assumed. If an MC type for another class of wires is
selected, the wire size suitable for the terminal size of both the inverter and the MC type should be taken into
account.
