Chapter 11 SELECTING PERIPHERAL EQUIPMENT

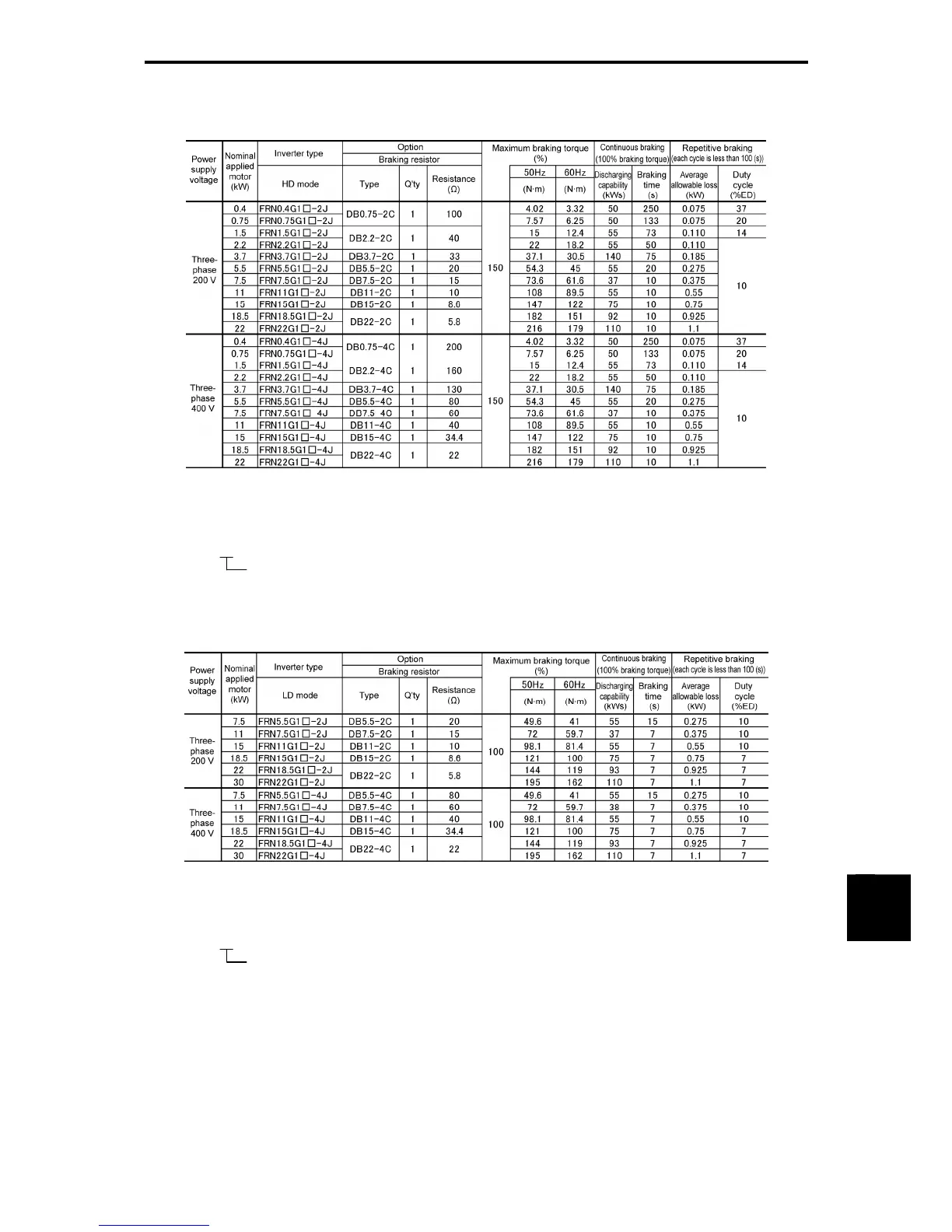

Table 11.4-5 Braking Resistor (10%ED Model) for HD-Mode Inverters
* The 10% ED braking resistor does not support overheating detection or warning output, so an electronic
thermal function (function codes F50 and F51) to protect the braking resistor needs to be set.
Note: A box () in the above table replaces an alphabetic letter depending on the enclosure.
S (Basic type), E (EMC filter built-in type), H (DC reactor built-in type)
Table 11.4-6 Braking Resistor (10%ED Model) for LD-Mode Inverters
* The 10% ED braking resistor does not support overheating detection or warning output, so an electronic
thermal function (function codes F50 and F51) to protect the braking resistor needs to be set.
Note: A box () in the above table replaces an alphabetic letter depending on the enclosure.
S (Basic type), E (EMC filter built-in type), H (DC reactor built-in type)
