Chapter 11 SELECTING PERIPHERAL EQUIPMENT

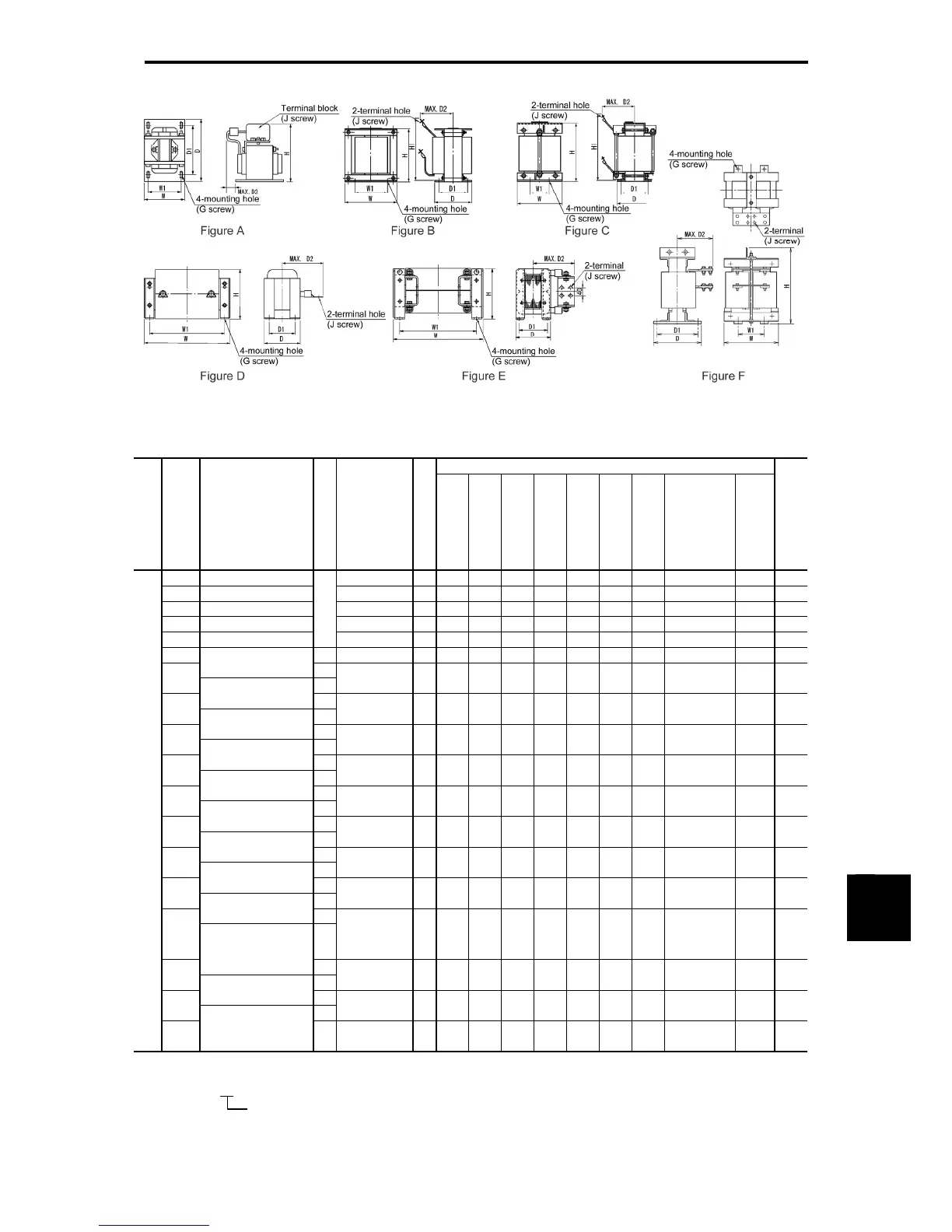

Figure 11.4-18
Table 11.4-22 DC Reactor (DCR) External Dimensions
Dimensions (mm)
Power supply
volta
g
e
Nominal applied
motor (kW)
Inverter type
Mode
DC reactor
type
Figure
W W1 D D1 D2 H H1
Mounting
hole G
Terminal
hole J
Approximate
mass (kg)
0.4 FRN0.4G1-2J DCR2-0.4 A 66 56 90 72 15 94 - M4 (5.2×8) M4 1.0
0.75 FRN0.75G1-2J DCR2-0.75 A 66 56 90 72 20 94 - M4 (5.2×8) M4 1.4
1.5 FRN1.5G1-2J DCR2-1.5 A 66 56 90 72 20 94 - M4 (5.2×8) M4 1.6
2.2 FRN2.2G1-2J DCR2-2.2 A 86 71 100 80 10 110 - M5 (6×9) M4 1.8
3.7 FRN3.7G1-2J
HD
DCR2-3.7 A 86 71 100 80 20 110 - M5 (6×9) M4 2.6
5.5 HD DCR2-5.5 A 111 95 100 80 20 130 - M6 (7×11) M5 3.6
FRN5.5G1-2J
LD
7.5
HD
DCR2-7.5 A 111 95 100 80 23 130 - M6 (7×11) M5 3.8
FRN7.5G1-2J
LD
11
HD
DCR2-11 A 111 95 100 80 24 137 - M6 (7×11) M6 4.3
FRN11G1-2J
LD
15
HD
DCR2-15 A 146 124 120 96 15 180 - M6 (7×11) M8 5.9
FRN15G1-2J
LD
18.5
HD
DCR2-18.5 A 146 124 120 96 25 180 - M6 (7×11) M8 7.4
FRN18.5G1-2J
LD
22
HD
DCR2-22A A 146 124 120 96 25 180 - M6 (7×11) M8 7.5
FRN22G1-2J
LD
30
HD
DCR2-30B B 152 90 156 116 115 130 190 M6 (φ8) M10 12
FRN30G1-2J
LD
37
HD
DCR2-37B
DCR2-37C
B/
D
171/
210
110/
185
151/
101
110/
81
115/
125
150/
125
200/
-
M6 (φ8)/
M6 (7×13)
M10/
M10
14/
7.4
FRN37G1-2J
LD
45
HD
DCR2-45B
DCR2-45C
B/
D
171/
210
110/
185
166/
106
125/
86
120/
135
150/
125
200/
-
M6 (φ8)/
M6 (7×13)
M10/
M12
16/
8.4
FRN45G1-2J
LD
55
HD
DCR2-55B
DCR2-55C
C/
D
190/
255
160/
225
131/
96
90/
76
100/
140
210/
145
250/
-
M6 (φ8)/
M6 (7×13)
M12/
M12
16/
11
FRN50G1-2J
LD
75
HD
DCR2-75C D 255 225 106 86 145 145 - M6 (7×13) M12 12
FRN75G1-2J
LD
90
HD
DCR2-90C D 255 225 116 96 155 145 - M6 (7×13) M12 14
Three-phase 200 V
110
FRN90G1-2J
LD
DCR2-110
C
D 300 265 116 90 185 160 - M8 (10×18) M12 17
Note: A box () in the above table replaces an alphabetic letter depending on the enclosure.

S (Basic type), E (EMC filter built-in type)
