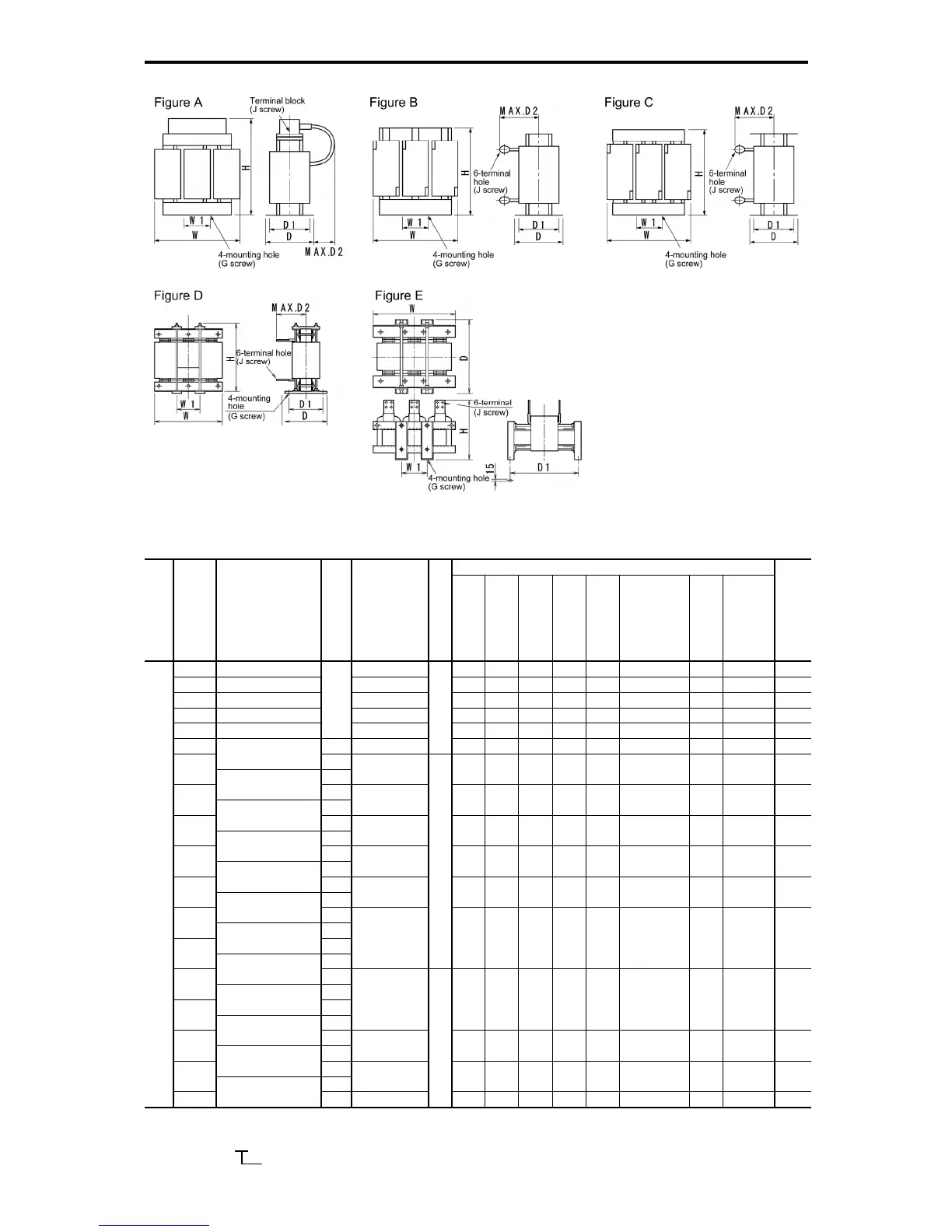

Figure 11.4-20
Table 11.4-24 AC Reactor (ACR) External Dimensions
Dimensions (mm)
Power supply
volta
g
e
Nominal applied
motor (kW)
Inverter type
Mode
AC Reactor type
Figure
W W1 D D1 D2 G H
Terminal
hole J
Approximate
mass (kg)
0.4 FRN0.4G1-2J ACR2-0.4A 120 40 90 65 20 M5 (6×10) 115 M4 1.4
0.75 FRN0.75G1-2J ACR2-0.75A 120 40 100 75 20 M5 (6×10) 115 M4 1.9
1.5 FRN1.5G1-2J ACR2-1.5A 120 40 100 75 20 M5 (6×10) 115 M4 2.0
2.2 FRN2.2G1-2J ACR2-2.2A 120 40 100 75 20 M5 (6×10) 115 M4 2.0
3.7 FRN3.7G1-2J
HD
ACR2-3.7A 125 40 100 75 25 M5 (6×10) 125 M4 2.4
5.5 HD ACR2-5.5A
A
125 40 115 90 25 M5 (6×10) 125 M4 3.1
FRN5.5G1-2J
LD
7.5
HD
ACR2-7.5A 125 40 115 90 106 M5 (6×10) 95 M5 3.1
FRN7.5G1-2J
LD
11
HD
ACR2-11A 125 40 125 100 106 M5 (6×10) 95 M6 3.7
FRN11G1-2J
LD
15
HD
ACR2-15A 180 60 110 85 106 M6 (7×11) 115 M6 4.8
FRN15G1-2J
LD
18.5
HD
ACR2-18.5A 180 60 110 85 109 M6 (7×11) 115 M6 5.1
FRN18.5G1-2J
LD
22
HD
ACR2-22A 180 60 110 85 109 M6 (7×11) 115 M6 5.1
FRN22G1-2J
LD
30
HD
FRN30G1-2J
LD
37
HD
ACR2-37
B
190 60 120 90 172 M6 (7×11) 190 Ｍ8 11
FRN37G1-2J
LD
45
HD
FRN45G1-2J
LD
55
HD
ACR2-55 190 60 120 90 200 M6 (7×11) 190 M12 13
FRN55G1-2J
LD
75
HD
ACR2-75 250 100 120 90 200 M8 (9×14) 250 M12 25
FRN75G1-2J
LD
90
HD
ACR2-90 285 190 158 120 190
M10
(12×20)
210 M12 26
Three-phase
200 V
110
FRN90G1
-2J
LD ACR2-110
C
280 150 138 110 200 M8 (10×20) 270 M12 30
Note: A box () in the above table replaces an alphabetic letter depending on the enclosure.

S (Basic type), E (EMC filter built-in type), H (DC reactor built-in type)
