11.4 Option
11-61
Chapter 11 SELECTING PERIPHERAL EQUIPMENT

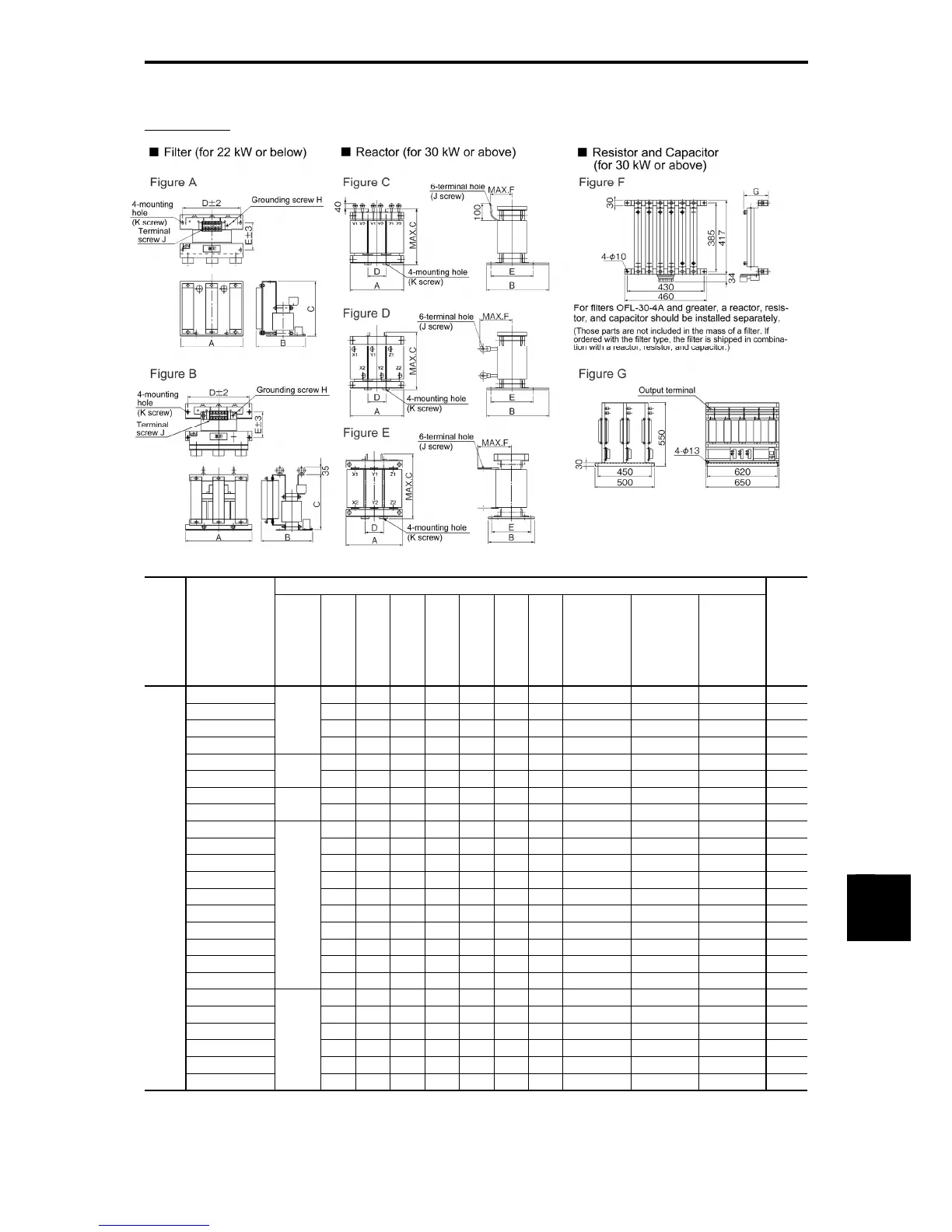

Table 11.4-26 Output Circuit Filter (OFL) External Dimensions
OFL--4A
Dimensions (mm)
Series Filter type
Figure A B C D E F G
Grounding
screw H
Terminal
screw J
Mounting
screw K
Approximate
mass (kg)
OFL-0.4-4A 220 175 195 200 95 - - M4 M4 M5 7
OFL-1.5-4A 220 175 195 200 95 - - M4 M4 M5 7
OFL-3.7-4A 220 225 220 200 115 - - M4 M4 M5 14
OFL-7.5-4A
A
290 290 230 260 160 - - M5 M5 M6 22
OFL-15-4A 330 275 310 300 145 - - M6 M6 M8 35
OFL-22-4A
B
330 300 330 300 170 - - M6 M6 M8 45
OFL-30-4A 210 175 210 70 140 90 160 - M5 M6 12
OFL-37-4A
C/F
220 190 220 75 150 95 160 - M5 M6 15
OFL-45-4A 220 195 265 70 155 140 160 - M6 M8 17
OFL-55-4A 260 200 275 85 160 150 160 - M6 M8 22
OFL-75-4A 260 210 290 85 170 150 233 - M8 M10 25
OFL-90-4A 260 210 290 85 170 155 233 - M8 M10 28
OFL-110-4A 300 230 330 100 190 170 233 - M8 M10 38
OFL-132-4A 300 240 340 100 200 170 233 - M10 M10 42
OFL-160-4A 300 240 340 100 200 180 233 - M10 M10 48
OFL-200-4A 320 270 350 105 220 190 333 - M10 M12 60
OFL-220-4A 340 300 390 115 250 190 333 - M10 M12 70
OFL-280-4A
D/F
350 300 430 115 250 200 333 - M10 M12 78
OFL-315-4A 440 275 450 150 230 170 - - M12 M12 90
OFL-355-4A 440 290 480 150 245 175 - - M12 M12 100
OFL-400-4A 440 295 510 150 240 175 - - M12 M12 110
OFL-450-4A 440 325 470 150 270 195 - - M12 M12 125
OFL-500-4A 440 335 500 150 280 210 - - M12 M12 145
Three-phase
400 V
OFL-630-4A
E/G
480 355 560 150 280 245 - - M12 M12 170
Note: The OFL-***-4A models have no restrictions on carrier frequency.
