Station address switches (RSW1 and RSW2)
The station address of the communications card on the T-Link should be configured with the station
address switches (rotary switches RSW1 and RSW2). The setting range is from 00 to 99 in decimal.

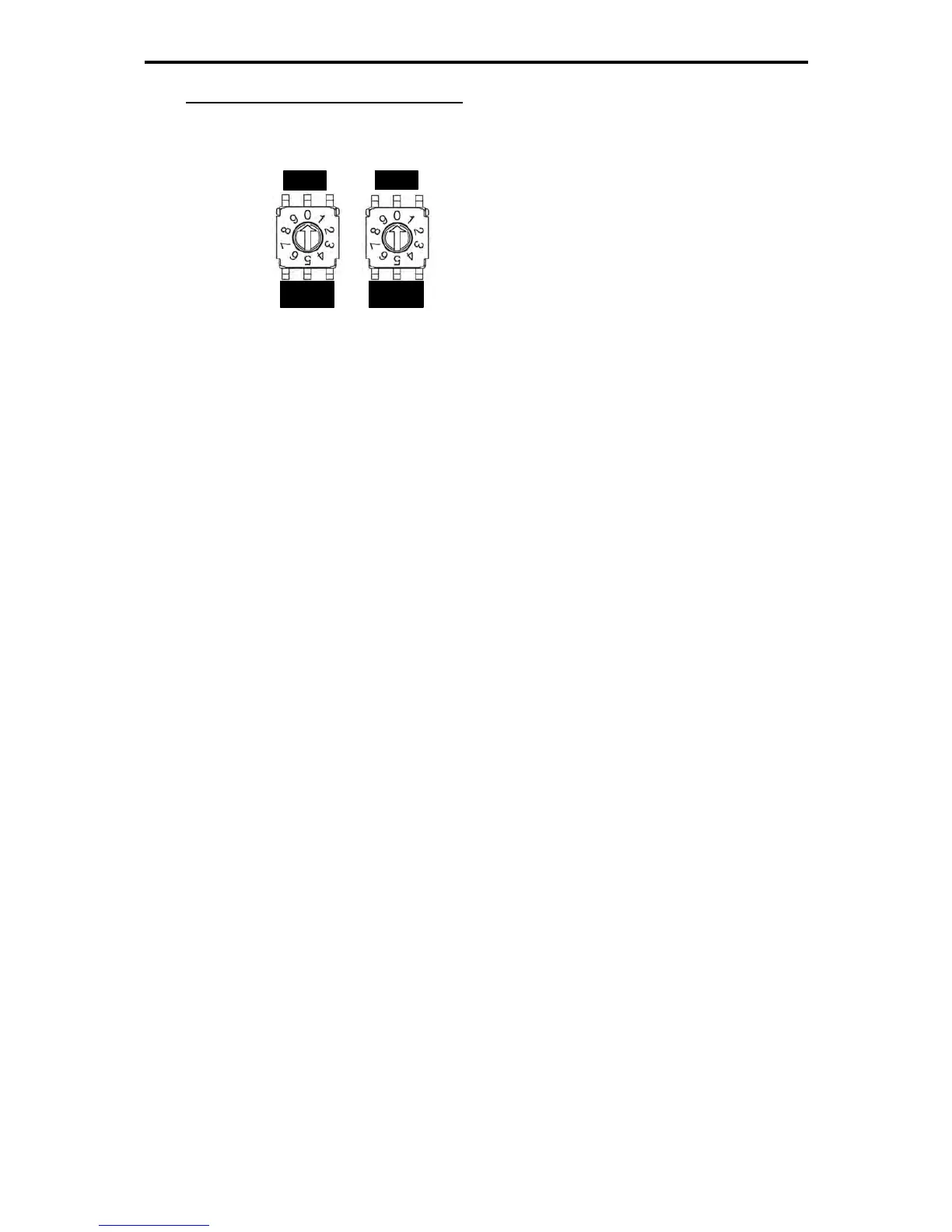

Figure 11.4-34
* When two or more communications cards are used on the same T-Link network, the same station
address should not be double assigned.
* Factory default: RSW1 = 0, RSW2 = 0 (Station address = 00)
RSW1
RSW2
×10 ×1
RSW1: Upper bit (x10)
RSW2: Lower bit (x1)
