Fuji Electric Frenic Mega Series - Page 667

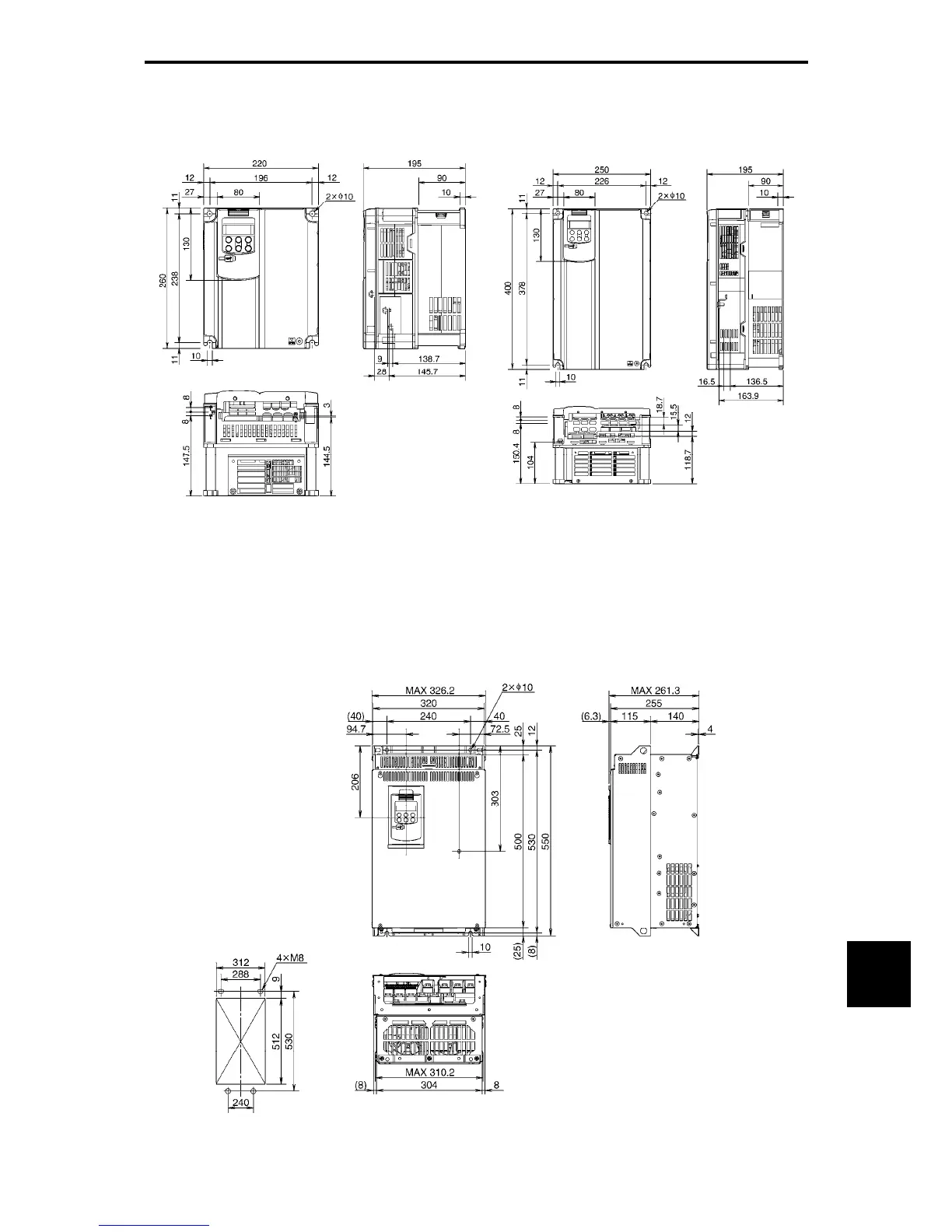

12.5 External Dimensions
12-19
Chapter 12 SPECIFICATIONS
Unit: mm
 FRN30G1
-2J/4J, FRN37G1-4J
Figure 12.5-5 Figure 12.5-6
Figure 12.5-7
 FRN5.5G1
-2J/4J, FRN7.5G1-2J/4J
FRN11G1
-2J/4J
 FRN15G1
-2J/4J, FRN18.5G1-2J/4J,
FRN22G1
-2J/4J
