Machine Components
57
Product Overview
2

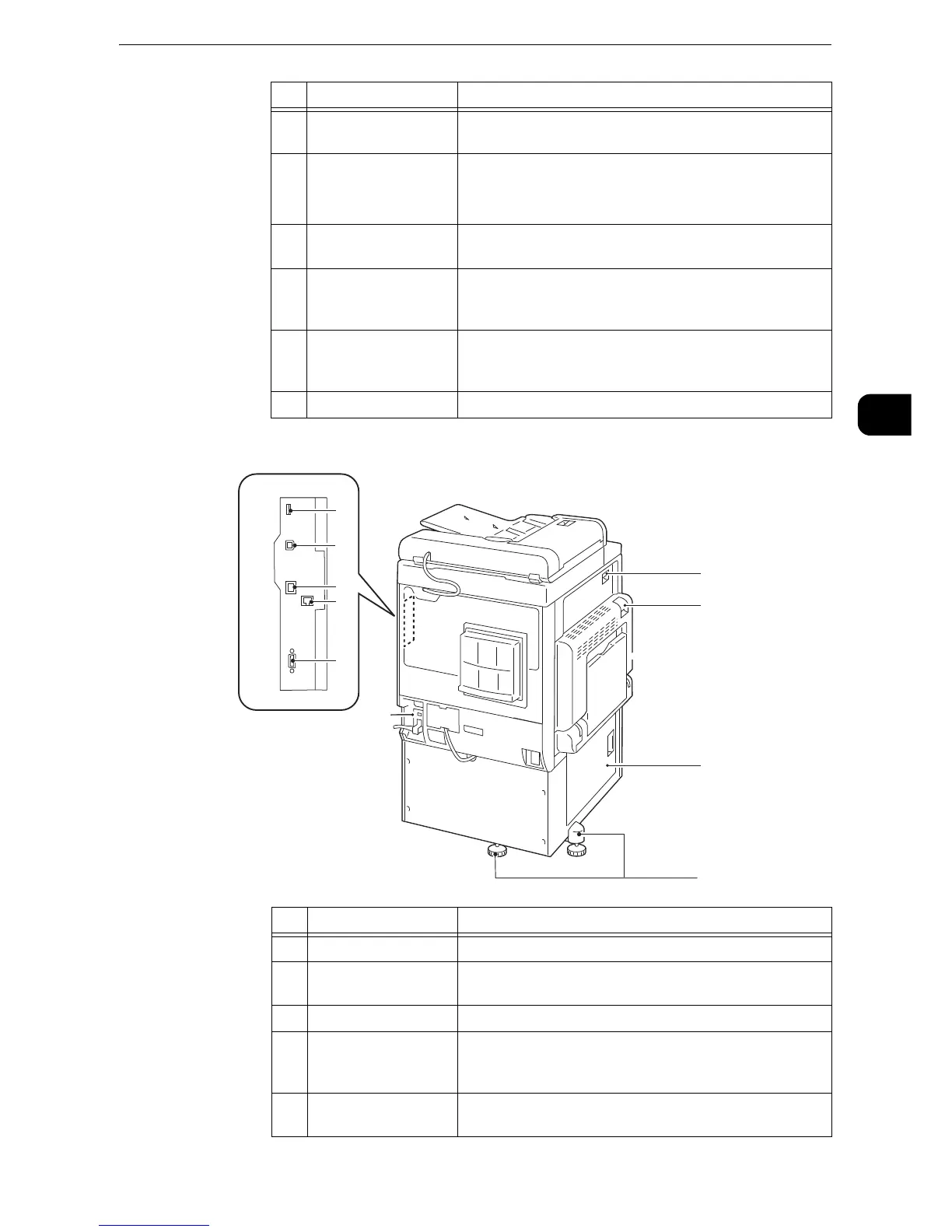

îš„ Left side and rear views of the machine
7 Lower center tray
(Output tray)
Copies and prints are delivered here, facing down.
8 Tray 1, 2, 3, 4 Load paper here.
z
Trays 2, 3, and 4 are optional for some models.
9 Locking casters Used to move the machine. Lock these casters after moving
the machine to its installation site.
10 Adjusting foot Prevents the machine from toppling over. Movethe
machine to its installation site and then rotatethis adjuster
in clockwise direction until it touchesa floor.
11 Tray 5 (Bypass) Used for loading non-standard paper, such as thick-stock
paper and other special media, that cannot be loaded in
Trays 1 to 4.
12 Side Tray (optional) Copies and prints are delivered here, facing up.
No. Component Function
1 Top left cover C Open this cover to clear paper jams.
2 Top left cover A Open this cover by pressing the release lever to clear paper
jams.
3 Bottom left cover B Open this cover to clear paper jams.
4 Adjusting foot Prevents the machine from toppling over. Move the
machine to its installation site and then rotate this adjuster
in clockwise direction until it touches a floor.
5 RESET button Automatically switches the machine off when a current
leakage is detected.
No. Component Function
4
5
2
3
1
7
9
8
10
6
