102 Upgrade and Maintenance Manual TX100 S3
Power supply
6.2.6 Reconnecting power cables

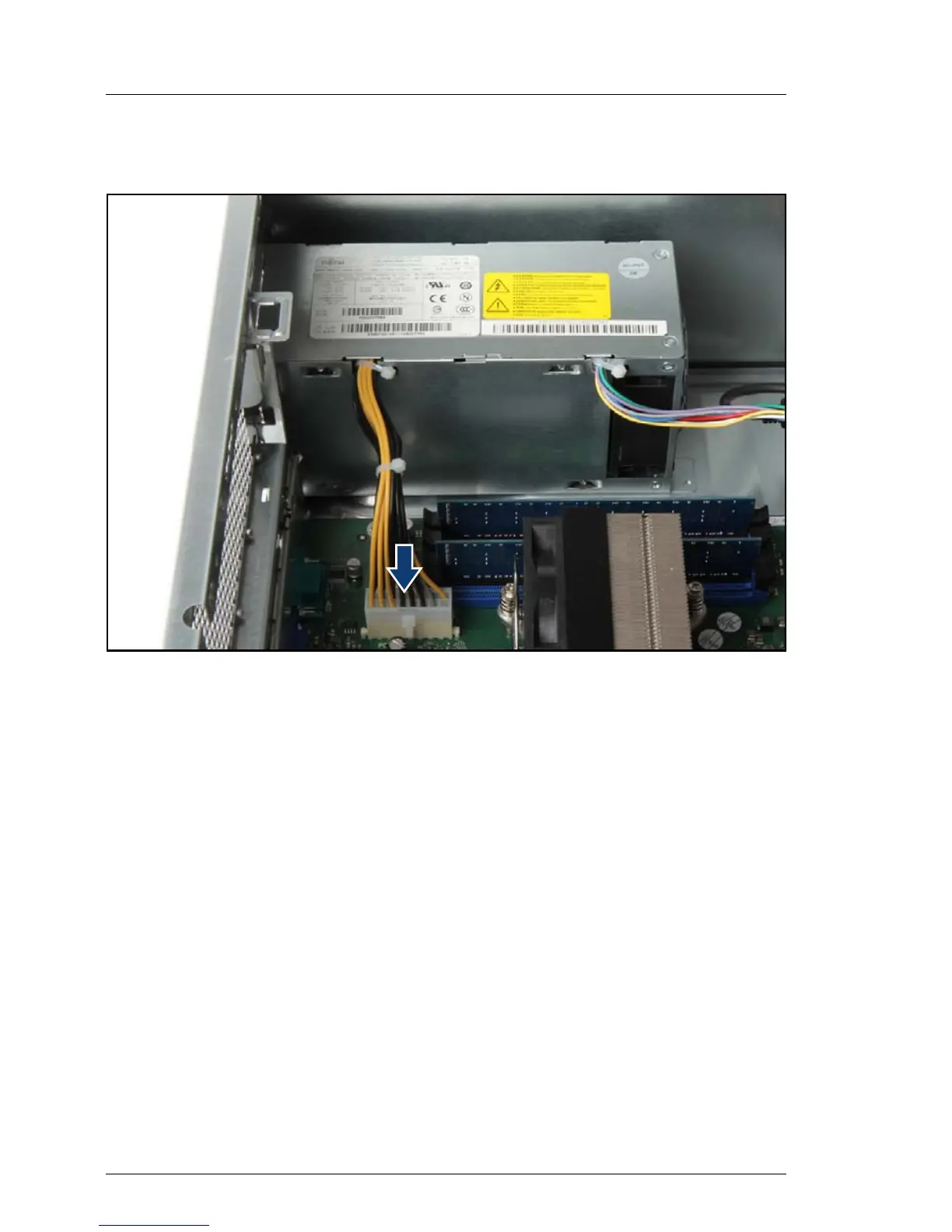

Figure 41: Connecting power cable
Ê Connect the PSU ATX power connector to system board connector
POWER.
