TX100 S3 Upgrade and Maintenance Manual 153
Expansion cards and backup units
9.2.1.4 Installing an expansion card
Ê Remove the expansion card from its protective packaging.
I For further instructions regarding controller settings, please refer to
the accompanying documentation.
Ê If applicable, attach the required slot bracket to the expansion card as
described in section "Mounting expansion card slot brackets" on page 190.

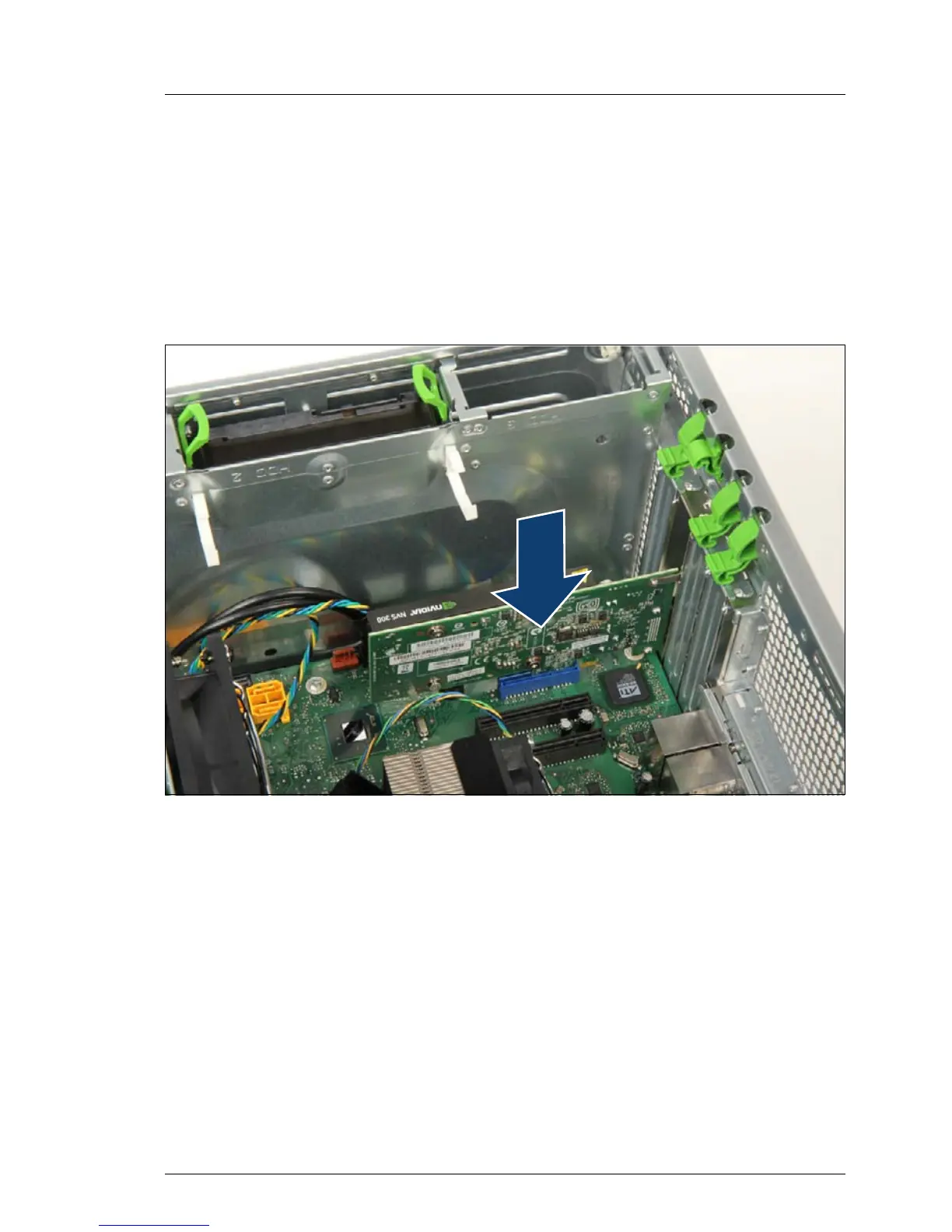

Figure 80: Installing the expansion card (A)
Ê Carefully insert the expansion card into the desired PCI slot and press down
firmly until it is fully seated in the slot.
