TX100 S3 Upgrade and Maintenance Manual 159
Expansion cards and backup units
9.2.2.4 Installing a PCI slot bracket
V CAUTION!
Always replace slot brackets into unused PCI slot openings to comply
with applicable EMC regulations and satisfy cooling requirements.

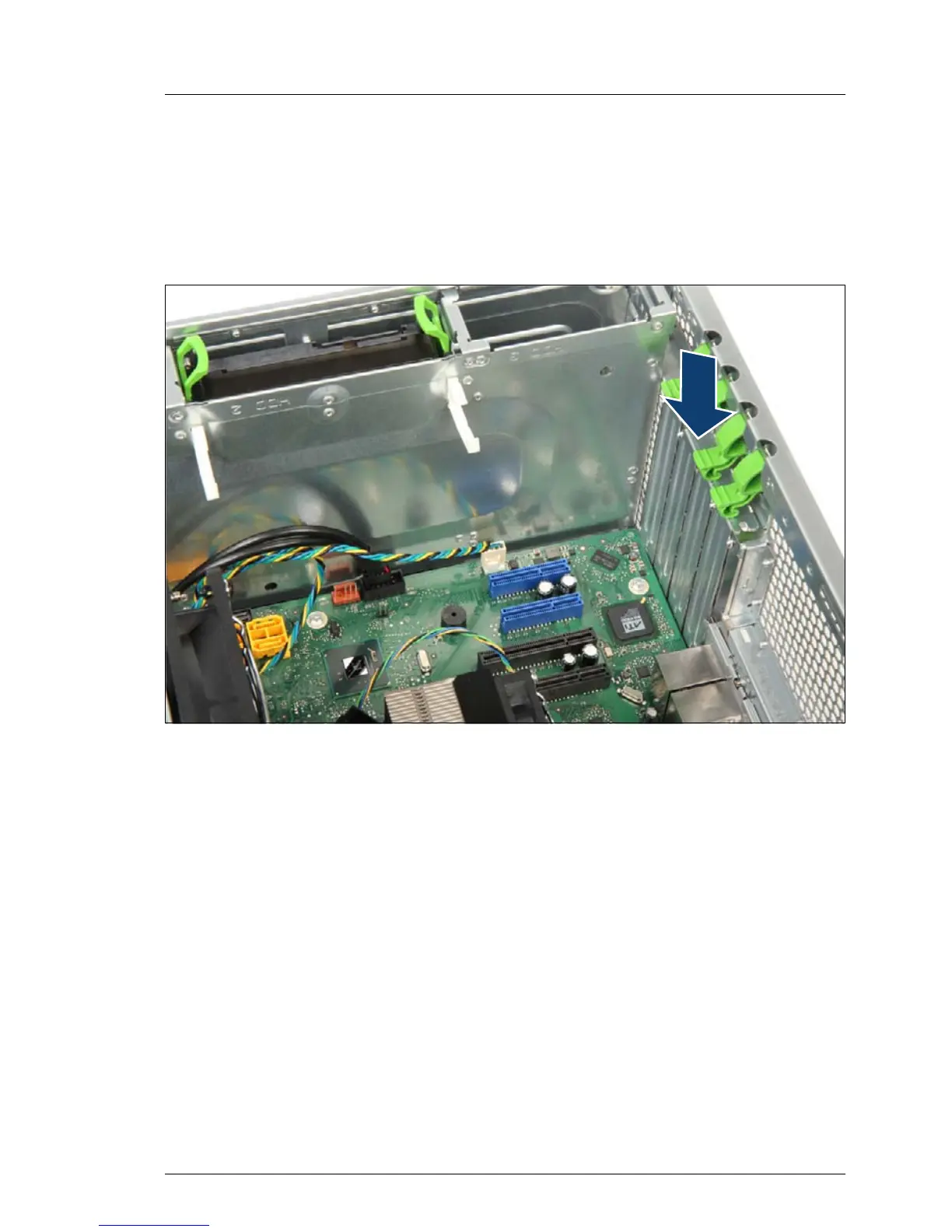

Figure 84: Installing a PCI slot bracket (A)
Ê Insert a PCI slot bracket into the unused PCI slot opening.
