284
Upgrade and Mai
ntenance Manual
TX100
S3
Front panel and external connectors
13.2.6
Inst
alling the new f
ront USB board

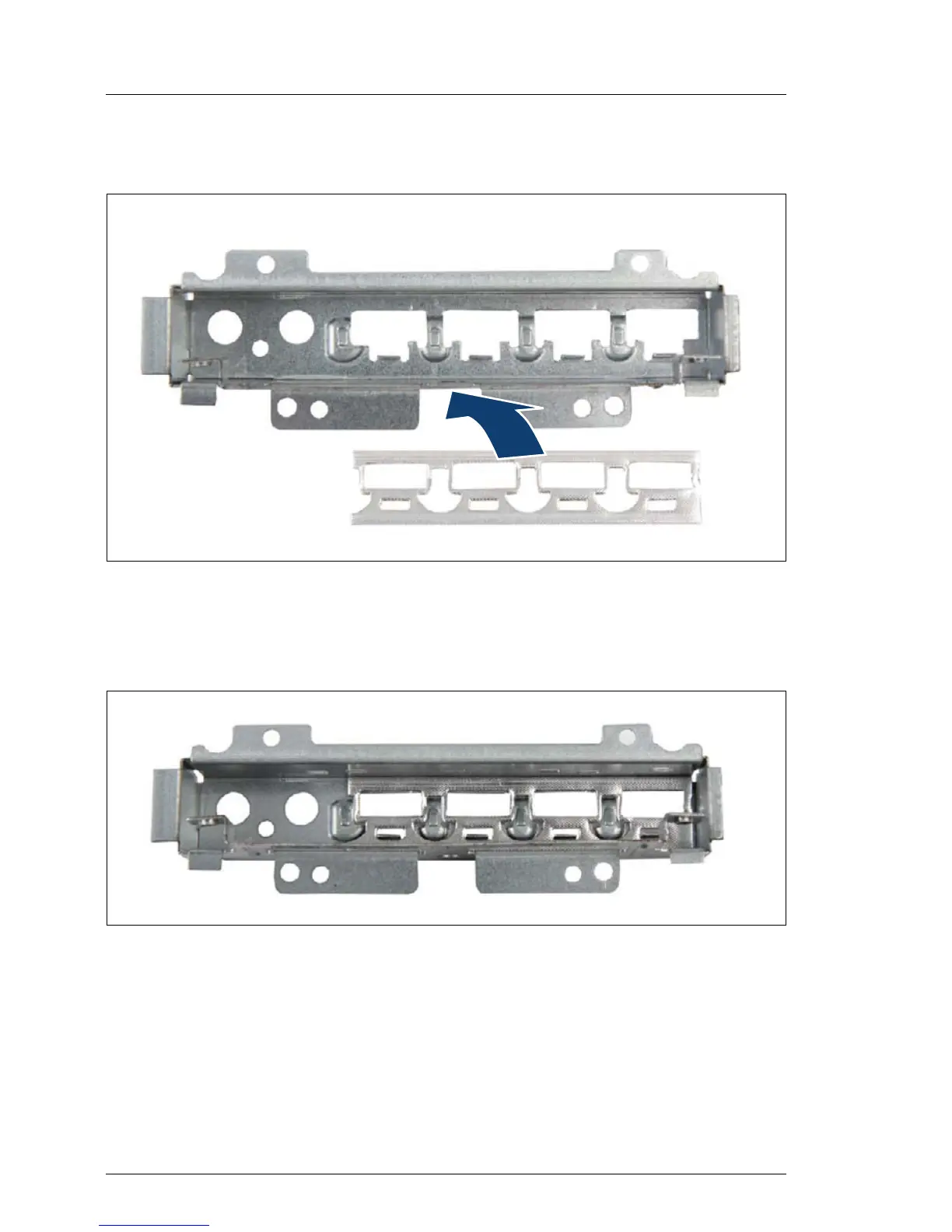

Figure 195: Instal
ling the gasket i
n the carrier
Ê
If applicable, insert the gasket in the carrier
.
I
T
ak
e care that the gasket fits with the re
cesses of the carrier
.
Figure 196: Gasket instal
led in the
carrier
