96 Upgrade and Maintenance Manual TX100 S3
Power supply
6.2.3 Disconnecting power cables

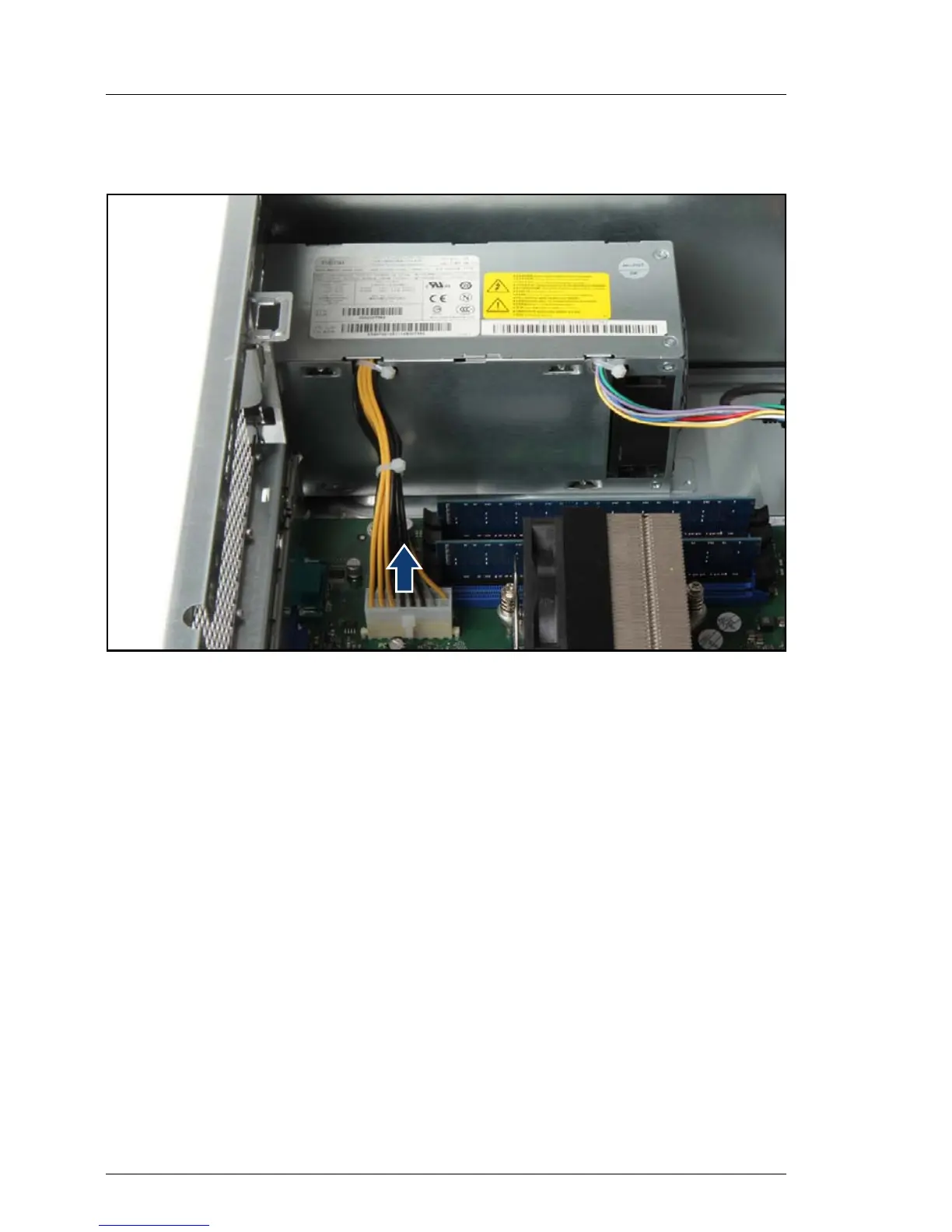

Figure 34: Disconnecting power cable
Ê While pressing the release latch on the connector, disconnect the PSU ATX
power connector from system board connector POWER.
