238 Upgrade and Maintenance Manual TX100 S3
Accessible drives
12.2.3 Removing the accessible drive dummy cover of
bay 2
If bay 2 will be equipped, it is necessary to break out the cover of bay 2 in the
front cover and to remove EMI spring in bay 2.
I Some chassis do not have any more the EMI spring installed in bay 2.
The pictures doesn’t always show the current version.

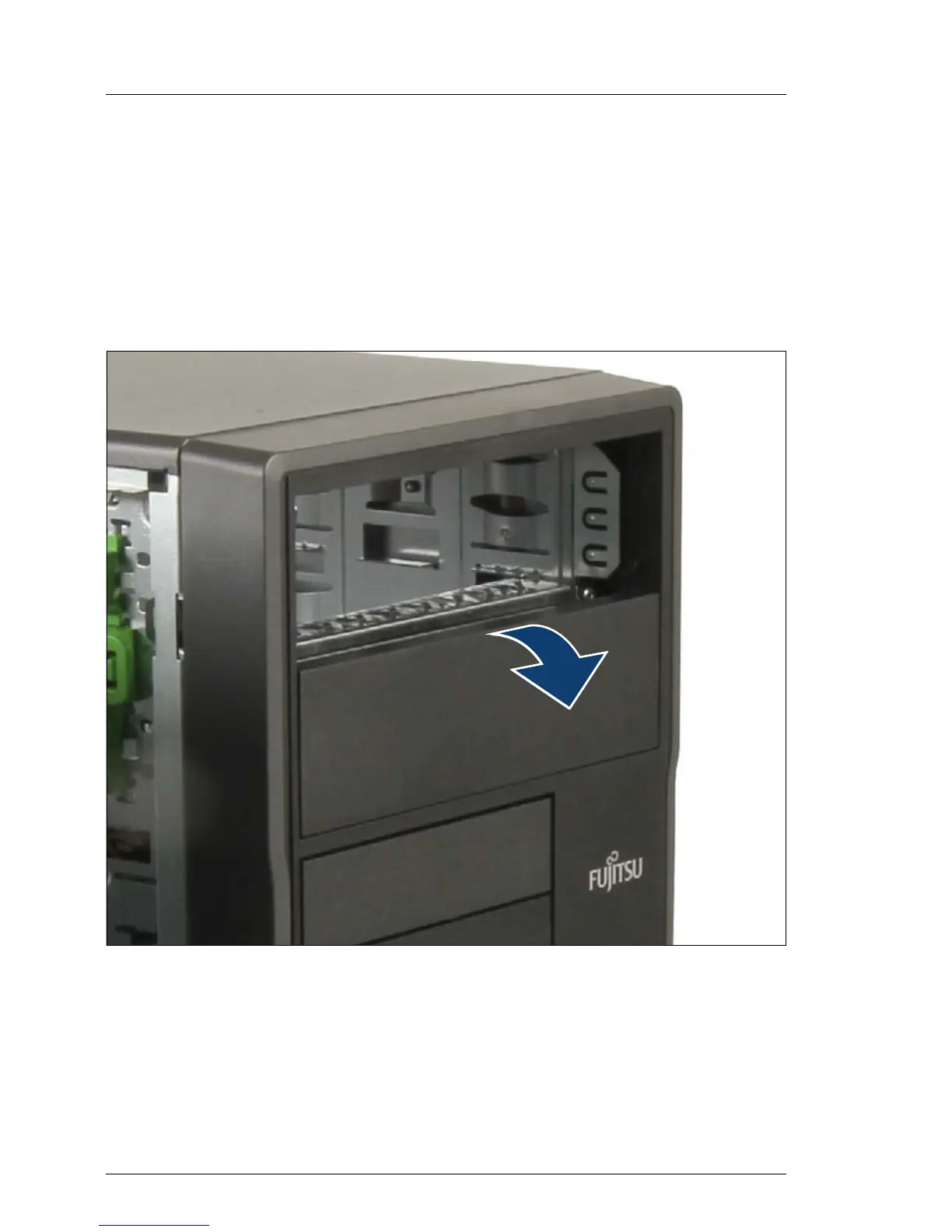

Figure 146: Removing the cover of bay 2
Ê Pull out the cover of bay 2.
