TX100 S3 Upgrade and Maintenance Manual 239
Accessible drives
Figure 147: Removing the dummy cover of bay 2

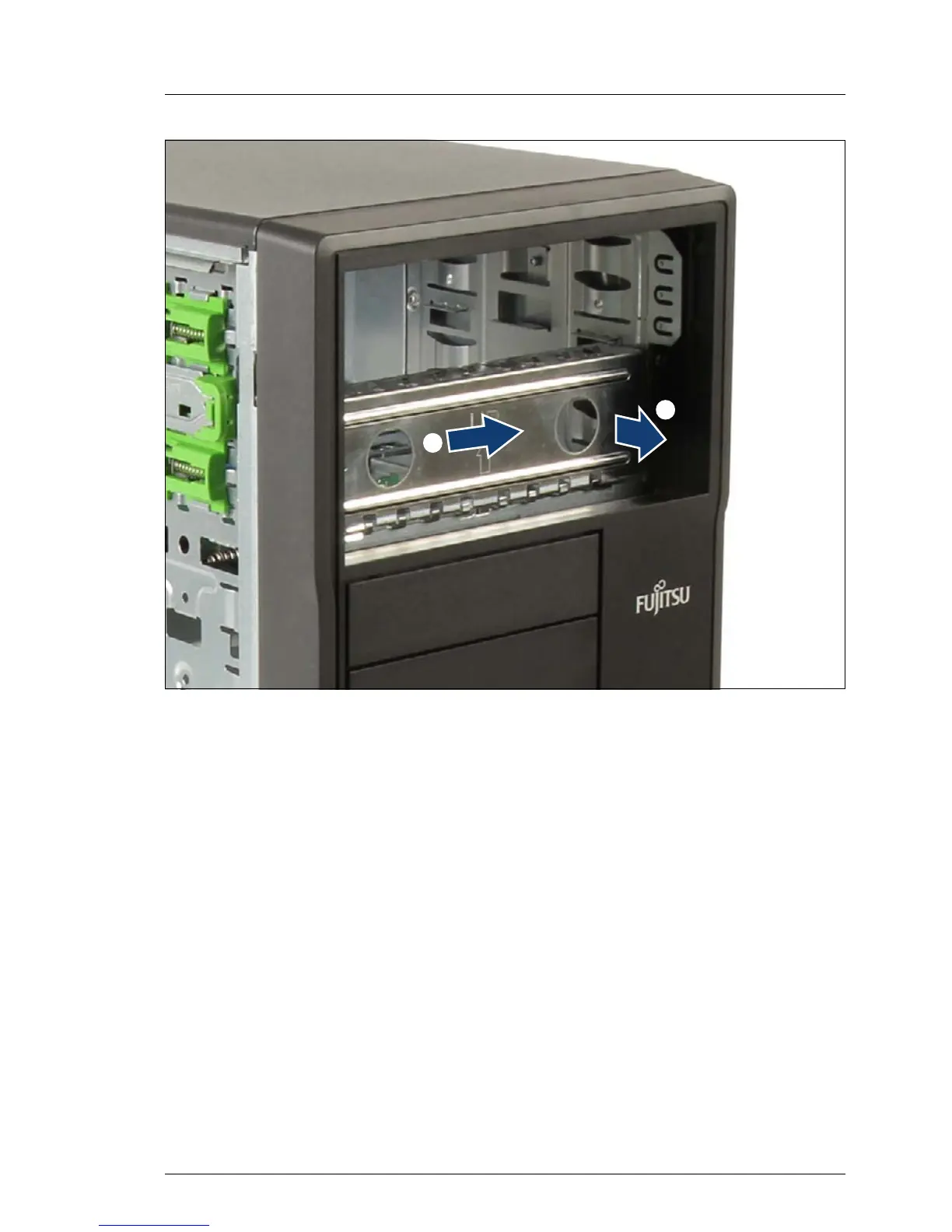

Ê If applicable, grip the EMI spring in the holes and push it a little to the right
side (1).
Ê Remove the EMI spring frontward (2).
V CAUTION!
Save the EMI spring for future use.
Always replace the EMI spring into the unused drive bays to comply with
applicable EMC regulations and satisfy cooling requirements.
/
