94 Upgrade and Maintenance Manual TX100 S3
Power supply
6.1.6 Reconnecting power cables

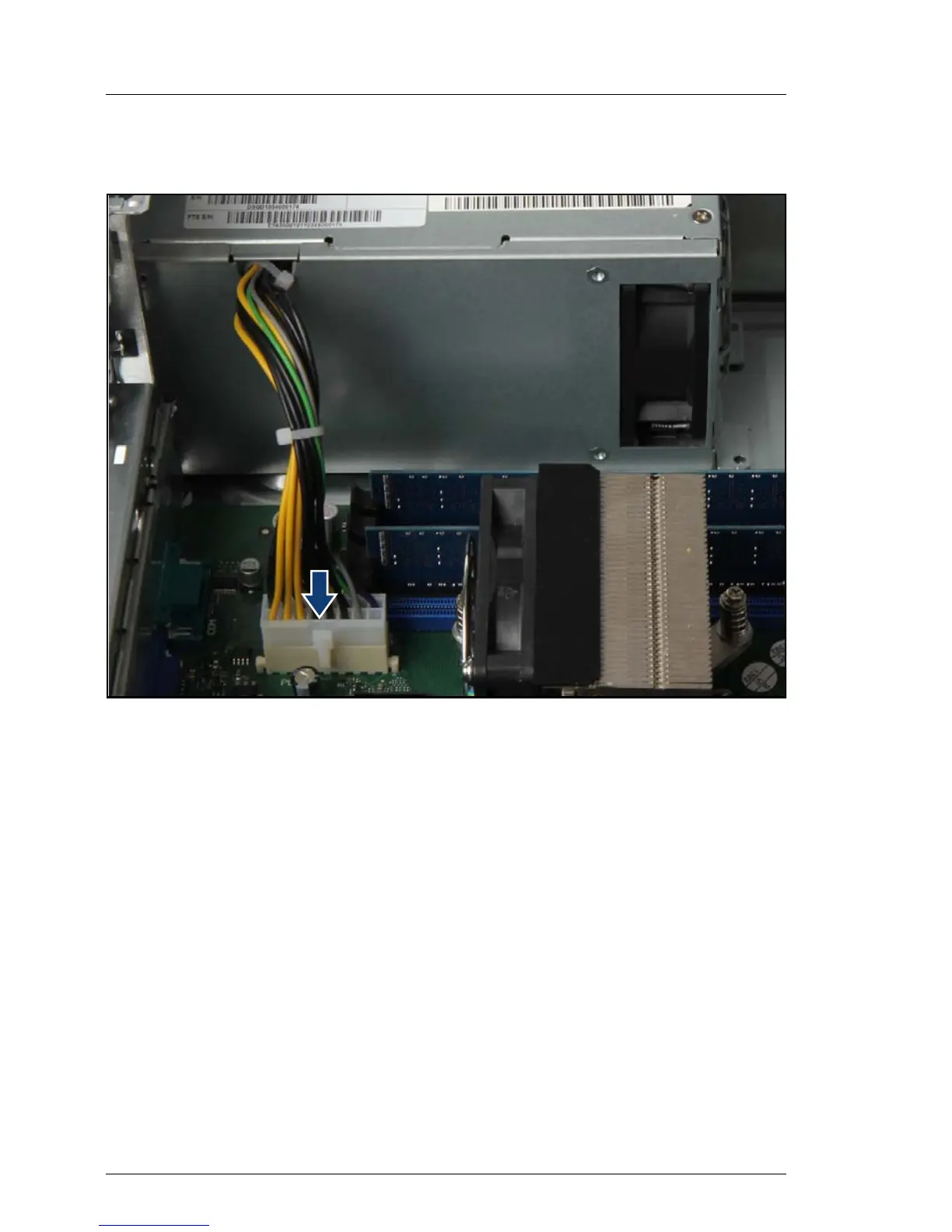

Figure 33: Connecting power cable
Ê Connect the PSU ATX power connector to system board connector
POWER.
6.1.7 Concluding steps
Perform the following procedures to complete the task:
Ê Close the side cover as described in section "Installing the side cover" on
page 58.
Ê Reconnect the AC power cord to the power supply unit and secure it with a
cable tie as described in section "Connecting the server to the mains" on
page 59.
Ê If BitLocker functionality is used and has been disabled before starting the
maintenance task, re-enable BitLocker as described in section "Enabling
BitLocker functionality" on page 82.
