Expansion cards and backup units

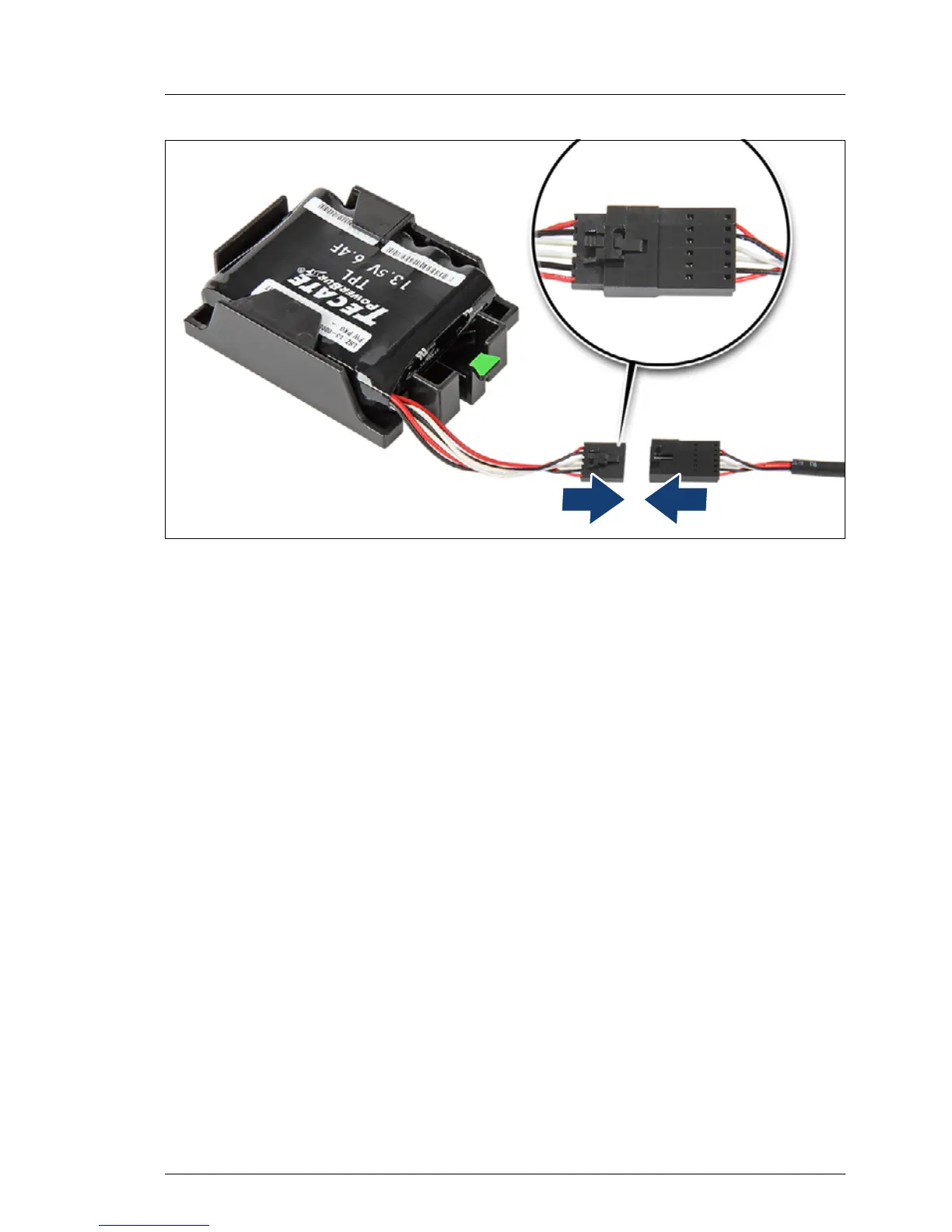

Figure 100: Connecting the FBU adapter cable to the FBU
Ê Connect the cable end on the FBU to the FBU adapter cable as shown.
9.3.2.5 Installing the FBU holder into the chassis
Ê Install the FBU holder into the chassis as described in section "Installing the
BBU holder into the chassis" on page 169.
