260 Upgrade and Maintenance Manual TX100 S3
Accessible drives
12.3.4 Removing a slimline optical disk drive (ODD)

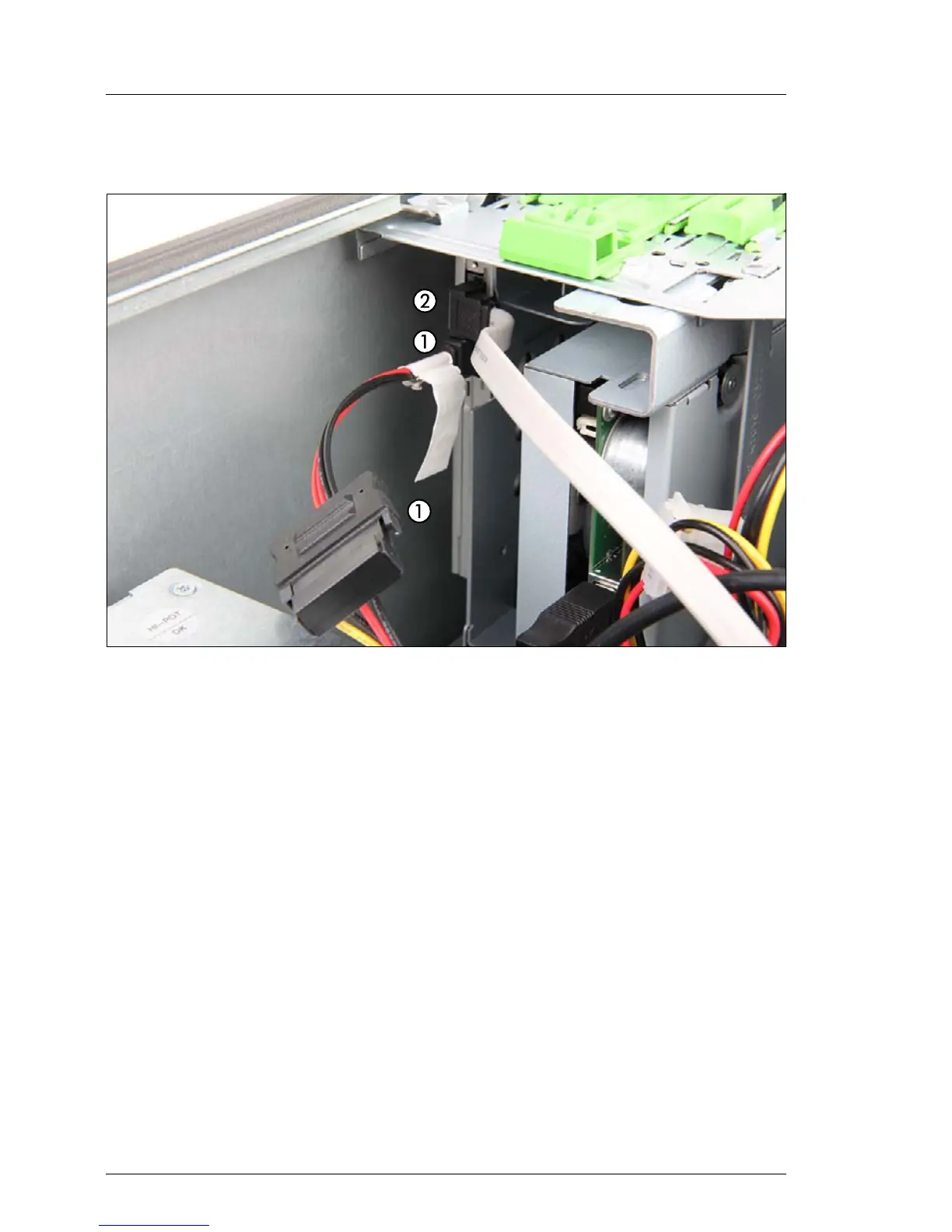

Figure 171: Disconnecting cables to the slimline drive
Ê Disconnect all cables from the slimline optical disk drive.
1 Power adapter cable (T26139-Y3990-V201) from the power cable
connector P8 (see figure 227 on page 329) and the slimline drive.
2 SATA cable
