TX100 S3 Upgrade and Maintenance Manual 139
System fan modules
8.3.3 Removing the system fan module 2

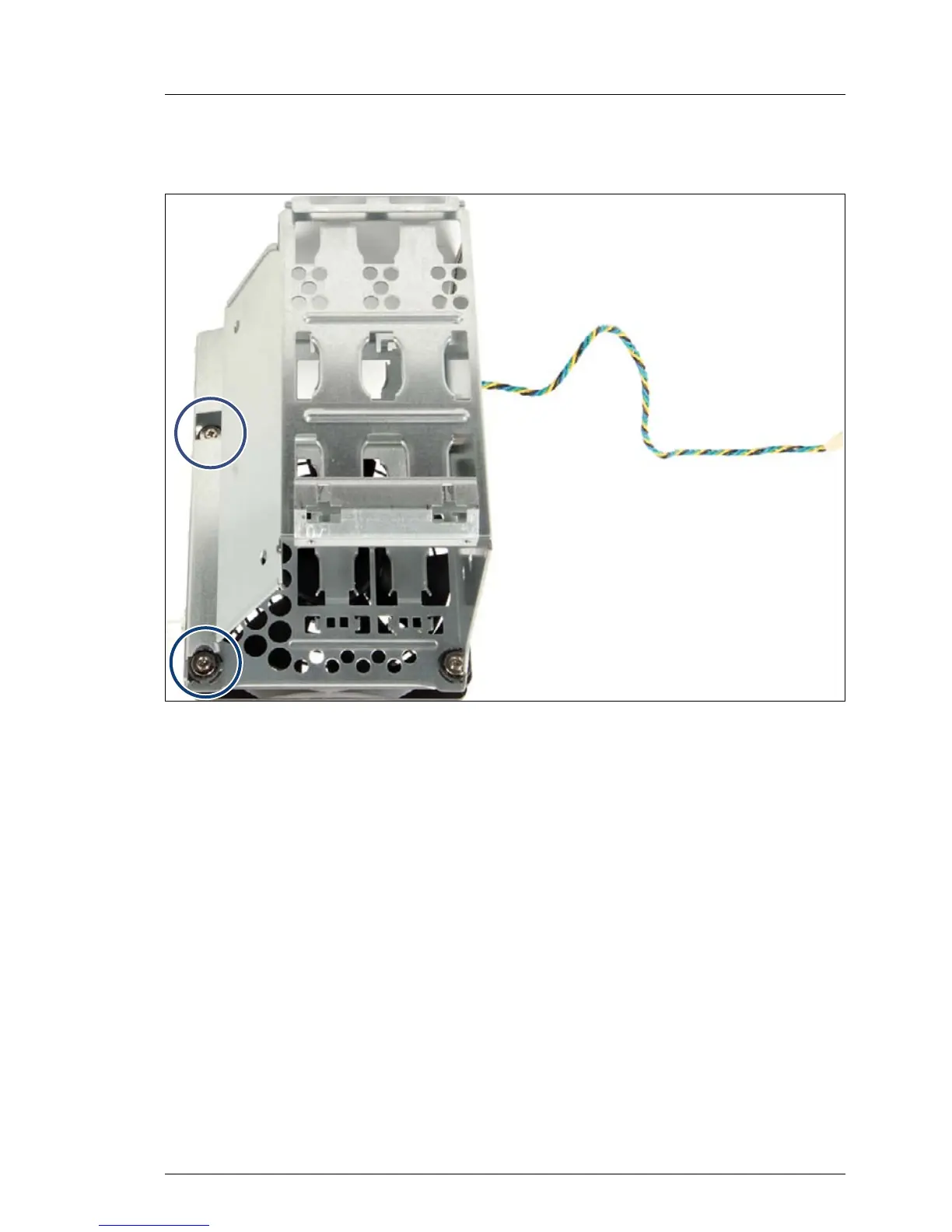

Figure 70: HDD cage with system fan module 2
I The only two screws to remove are those which are marked with circles.
Ê Remove the screws (see circles).
