TX100 S3
Upgrade and Maintenance Manual
245
Accessible drives
12.2.5
Inst
alling a
slimline
optical
disk drive (ODD)
12.2.5.1
Mounting th
e slimline drive in the slide-in un
it

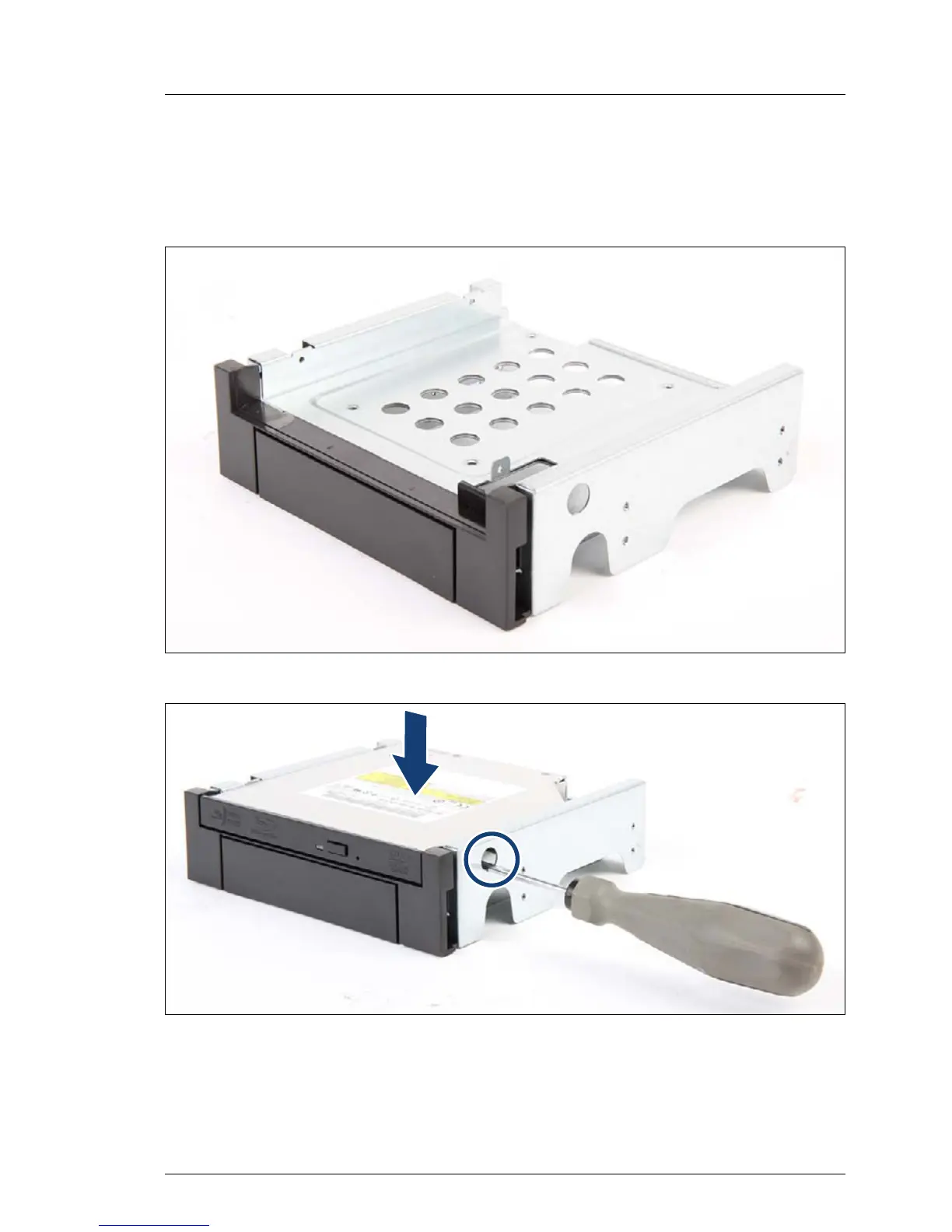

Figure 154:
Slide-in unit for s
limline ODD drive
Figure 155: Mounting the slimline ODD in t
he slide-in
unit (A)
Ê
Insert the slimline ODD on the top.
