TX100 S3 Upgrade and Maintenance Manual 89
Power supply
6.1.3 Disconnecting power cables

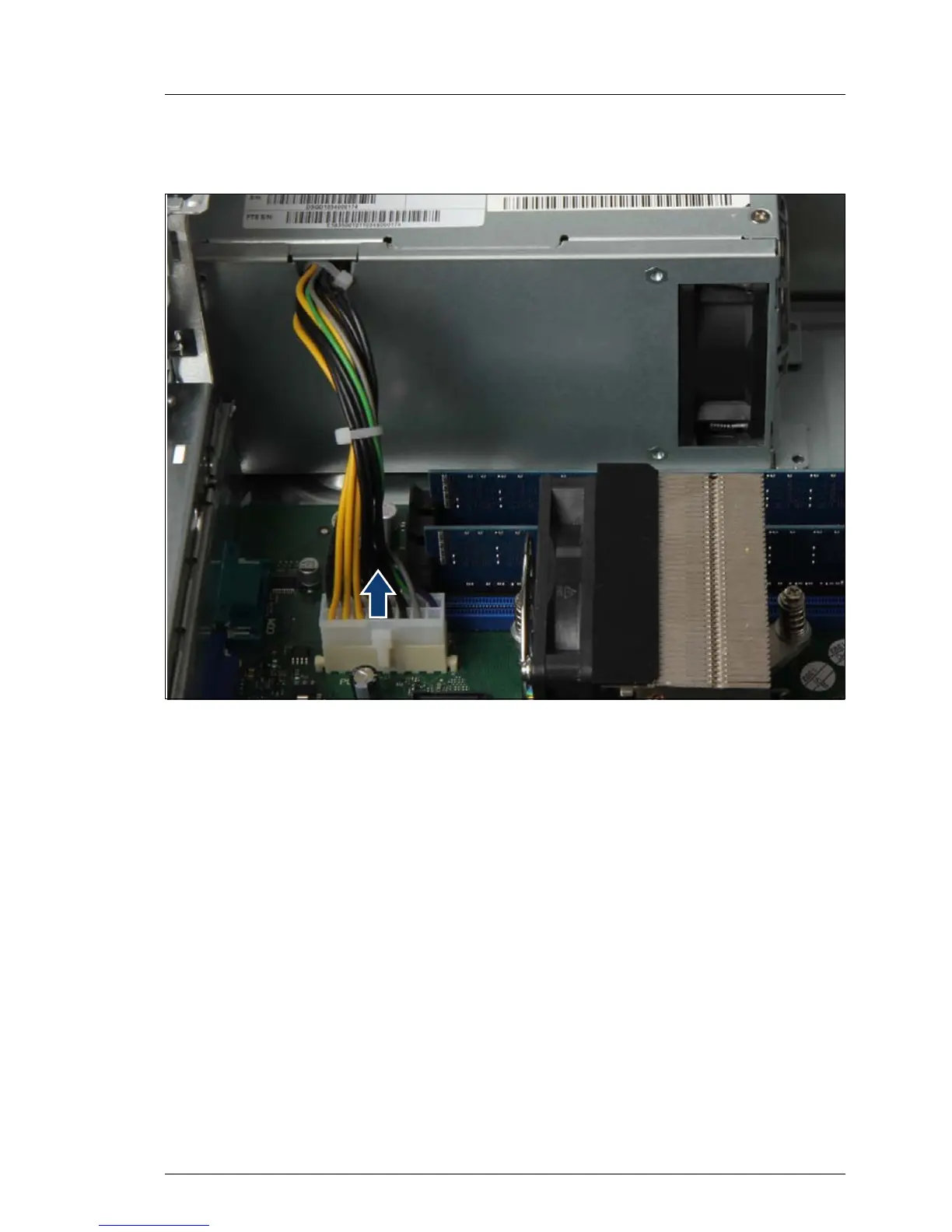

Figure 27: Disconnecting power cable
Ê While pressing the release latch on the connector, disconnect the PSU ATX
power connector from system board connector POWER.
