154 Upgrade and Maintenance Manual TX100 S3
Expansion cards and backup units

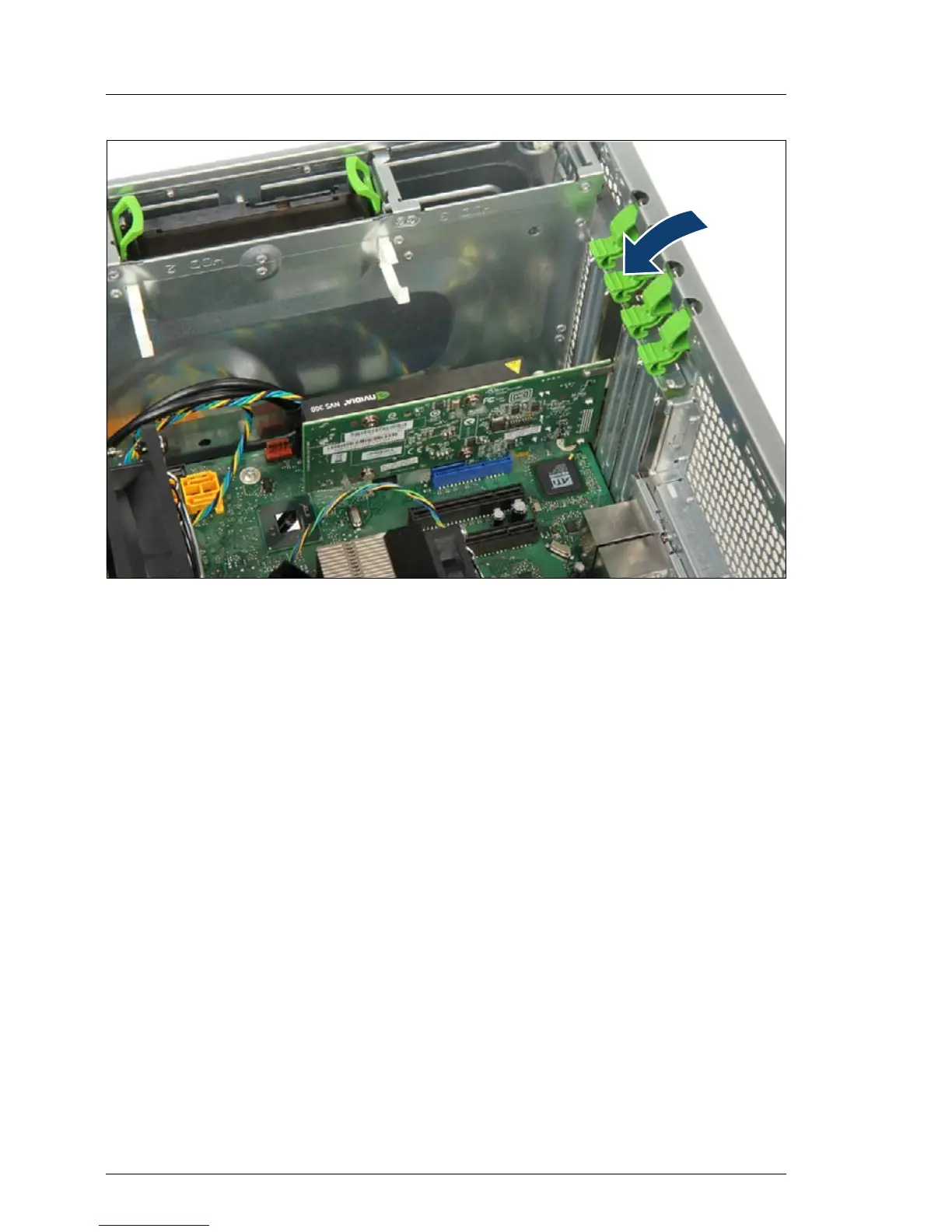

Figure 81: Installing the expansion card (B)
Ê Close the slot bracket clamp.
9.2.1.5 Connecting cables to the expansion card
Ê If applicable, connect internal cables to the expansion card.
I For a complete cabling overview, please refer to section "Cabling
overview" on page 322.
9.2.1.6 Connecting a battery backup unit to the expansion card
Ê If applicable, connect a BBU to the expansion card as described in section
"Installing a BBU" on page 166.
