Fujitsu PRIMERGY TX100 S3 - Installing the Power Supply Unit

92 Upgrade and Maintenance Manual TX100 S3
Power supply
6.1.5 Installing the power supply unit

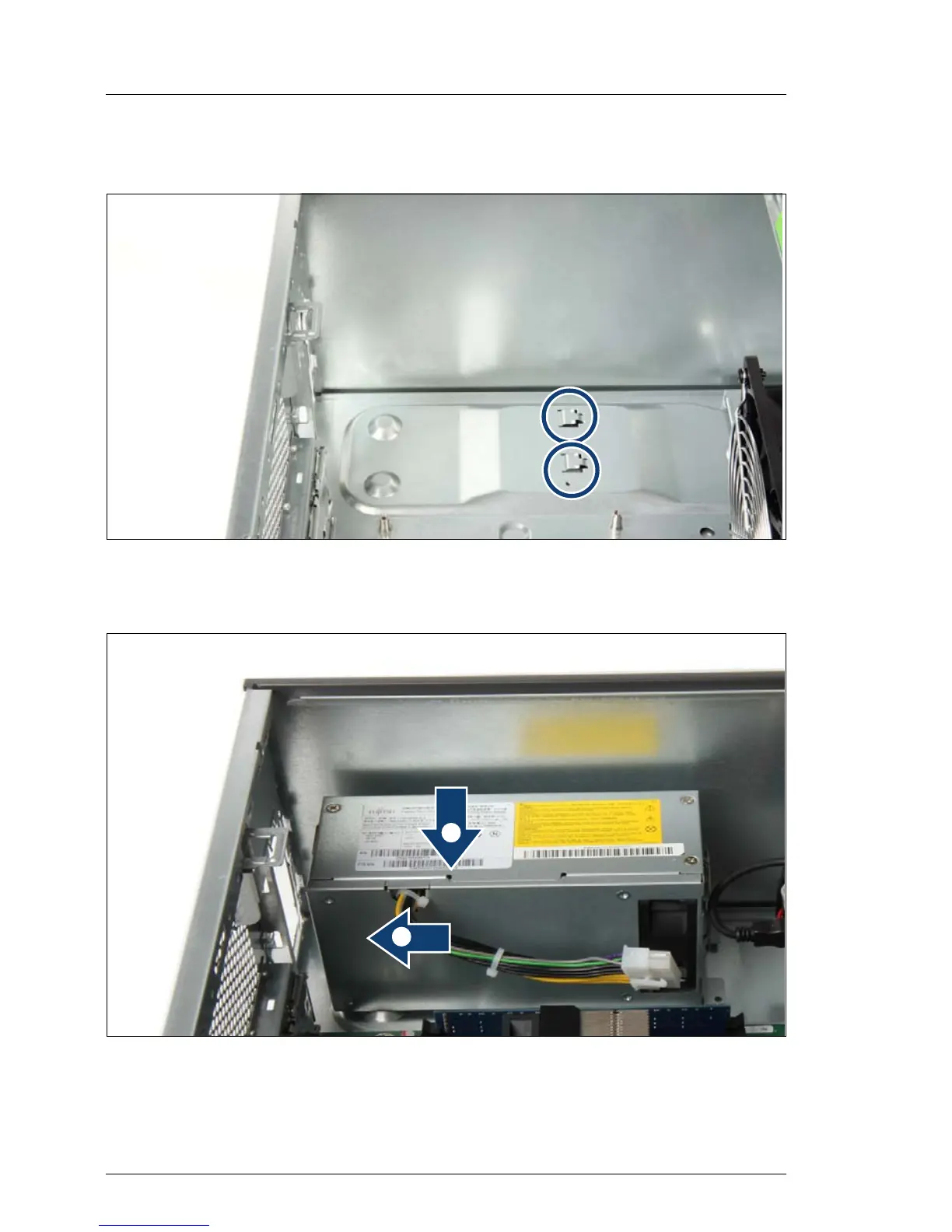

Figure 30: Hooks for fastening the PSU
I Take care, that the PSU is fastening into the hooks (see circles).
Figure 31: Installing the PSU
Ê Insert the new PSU into the chassis (1).
Ê Slide the new PSU towards the rear of the chassis (2).
/
