Fujitsu PRIMERGY TX100 S3 - Removing the Processor Heat Sink Type B

TX100 S3 Upgrade and Maintenance Manual 215
Processo
r
11.2.3.2 Removing the processor heat sink type B

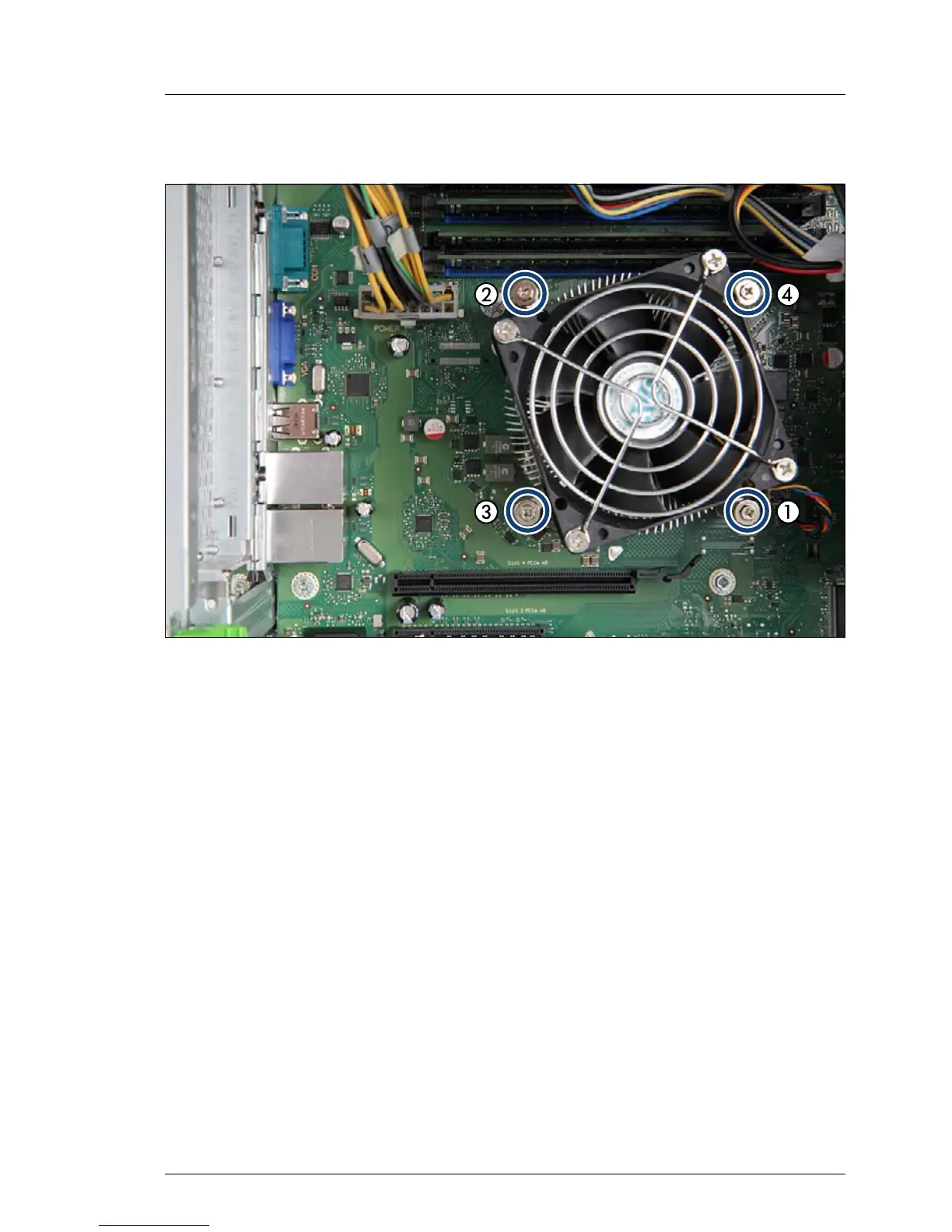

Figure 128: Removing the processor heat sink type B (A)
Ê Loosen the four captive screws on the heat sink in a crossover pattern (1-4).
