TX100 S3
Upgrade and Maintenance Manual
277
Front panel and ext
ernal connectors
13.1.6
Inst
alling the front p
anel cable

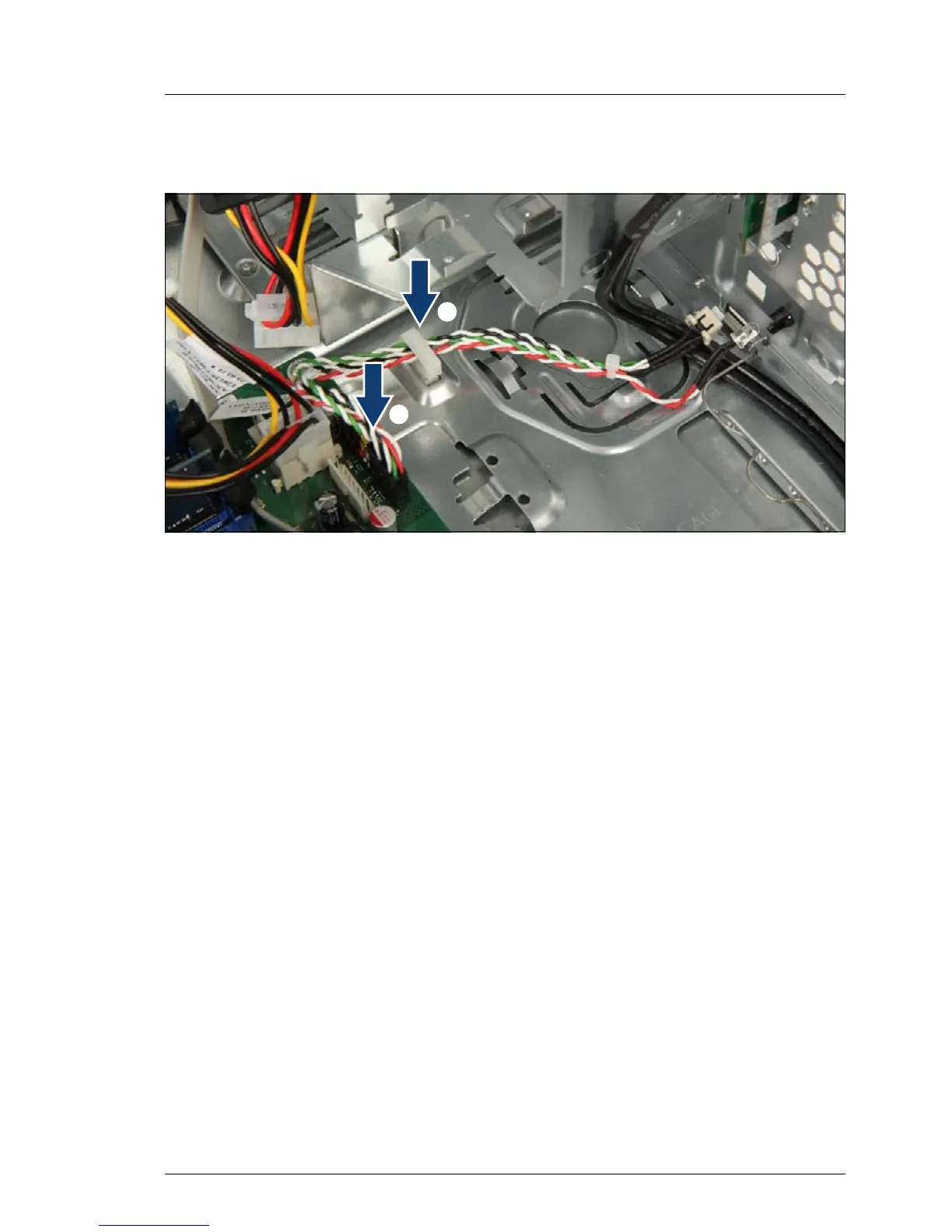

Figure 188: Connect
ing front panel cable
Ê
Connect the front panel cable to system board connector Front p
anel (1).
Ê
Route the cable as shown.
Ê
Secure the cable with the cable clamp (2).
/
0
