58
Upgrade and Maintenanc
e Manual
TX100
S3
Basic hardware procedures
4.4.
4
Inst
alling the
side cov
er

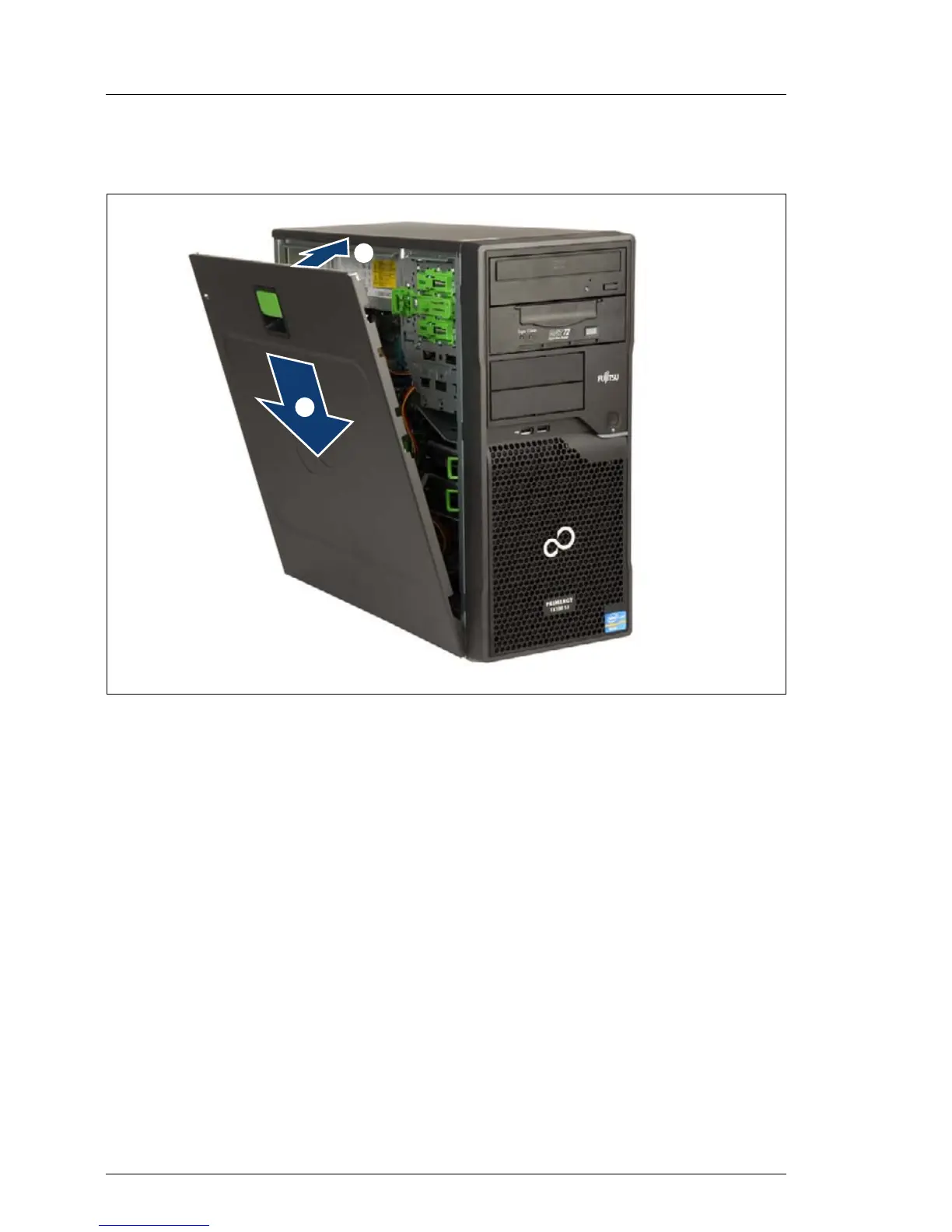

Figure 16: Instal
ling the side cover (A)
Ê
Hook the side cover in the bottom side cant of the chassis (1).
Ê
Push the side cover against the chassis until the locking mechanis
m
engages (2).
/
0
57
59
