Accessible drives
Ê Fasten it with one M2 x 2.5 mm screw (C26192-Y10-C62) to the slide-in unit
on the right side.

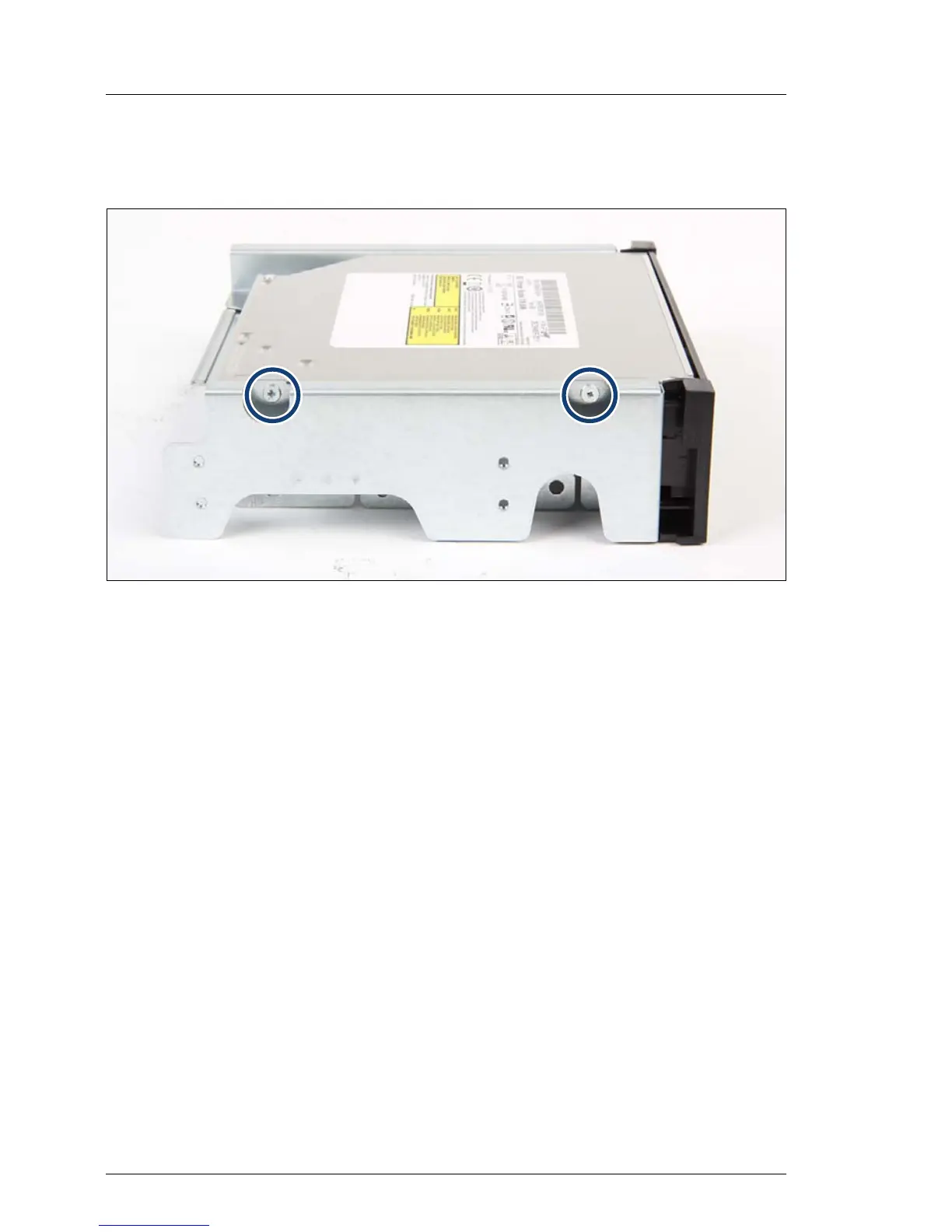

Figure 156: Mounting the slimline ODD in the slide-in unit (B)
Ê Fasten it with two M2 x 2.5 mm screws to the slide-in unit on the left side.
12.2.5.2 Preparing the slide-in unit
I There are two fixation plates for accessible drives. You need one fixation
plate for an accessible drive to be installed.
