TX100 S3 Upgrade and Maintenance Manual 61
Basic hardware procedures
4.7 Removing the HDD cage
4.7.1 Preliminary steps
Before replacing the system fan module, perform the following steps:
Ê Shut down the server as described in section "Shutting down the server" on
page 42.
Ê Remove the AC power cord from the cable tie and disconnect it from the
system as described in section "Disconnecting power cord" on page 43.
Ê Open the side cover as described in section "Removing the side cover" on
page 45.
Ê Remove the HDDs as described in section "Removing 3.5-inch HDDs" on
page 118.
I Take care, that you notice all detached cables for future reconnecting.

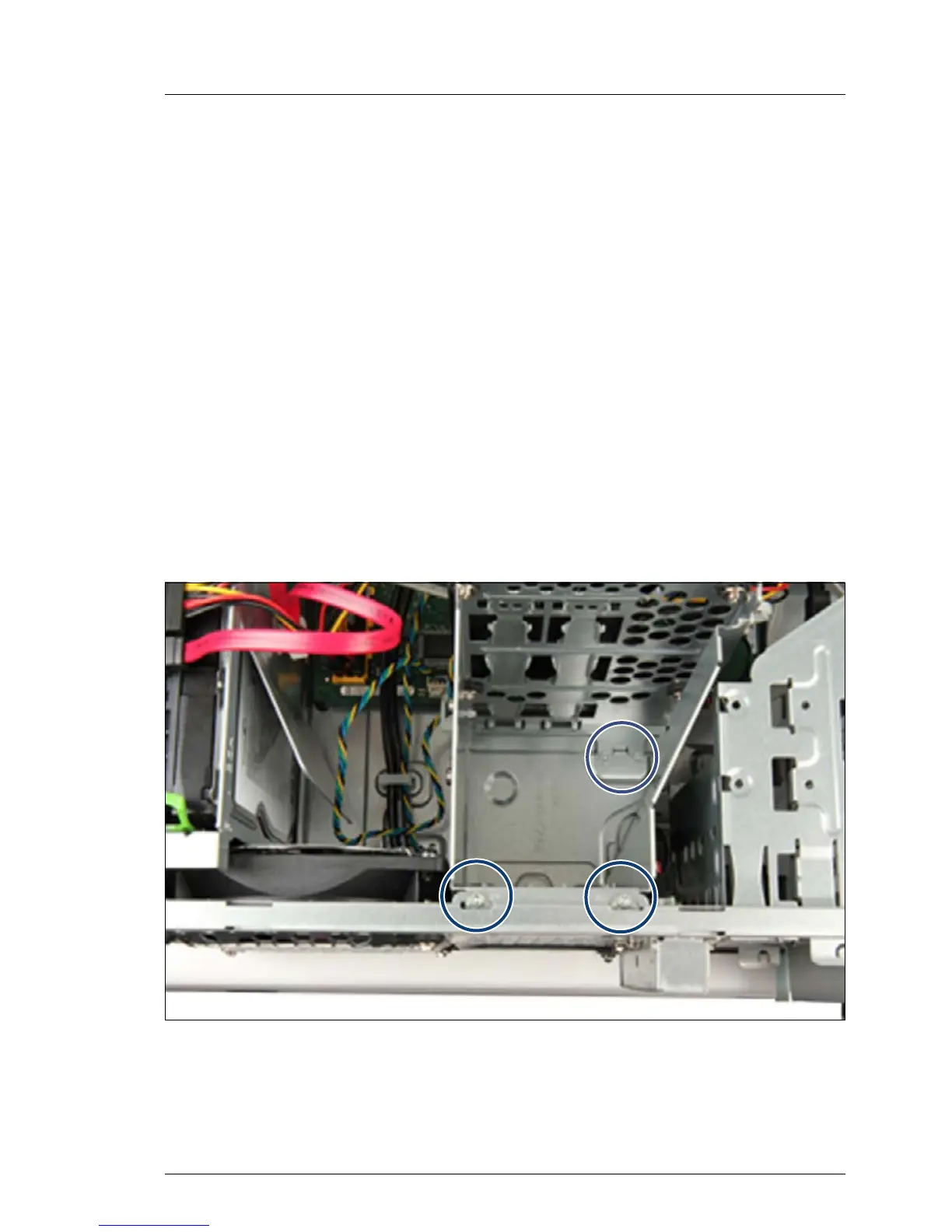

Figure 19: Remove the screws
Ê Remove the four screws (see circles).
