TX100 S3
Upgrade and Maintenance Manual
45
Basic hardware procedures
4.3.1
Removing t
he side c
over

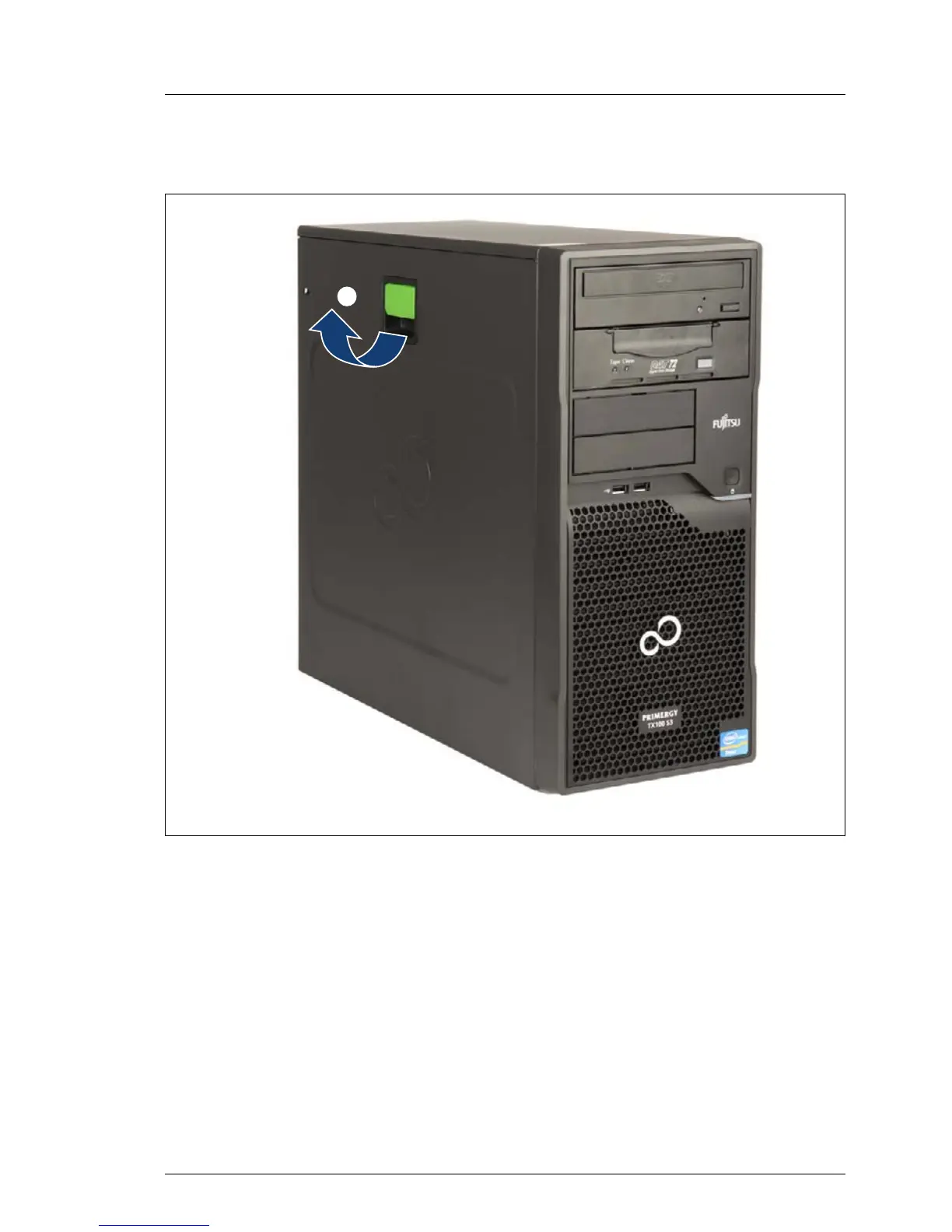

Figure 4: Removing the side cover
Ê
Pull the locking lever as far as it will go (1).
This will dis
engage the locking mech
anism.
/
