178 Upgrade and Maintenance Manual TX100 S3
Expansion cards and backup units
9.3.2.6 Connecting the FBU adapter cable to the TFM

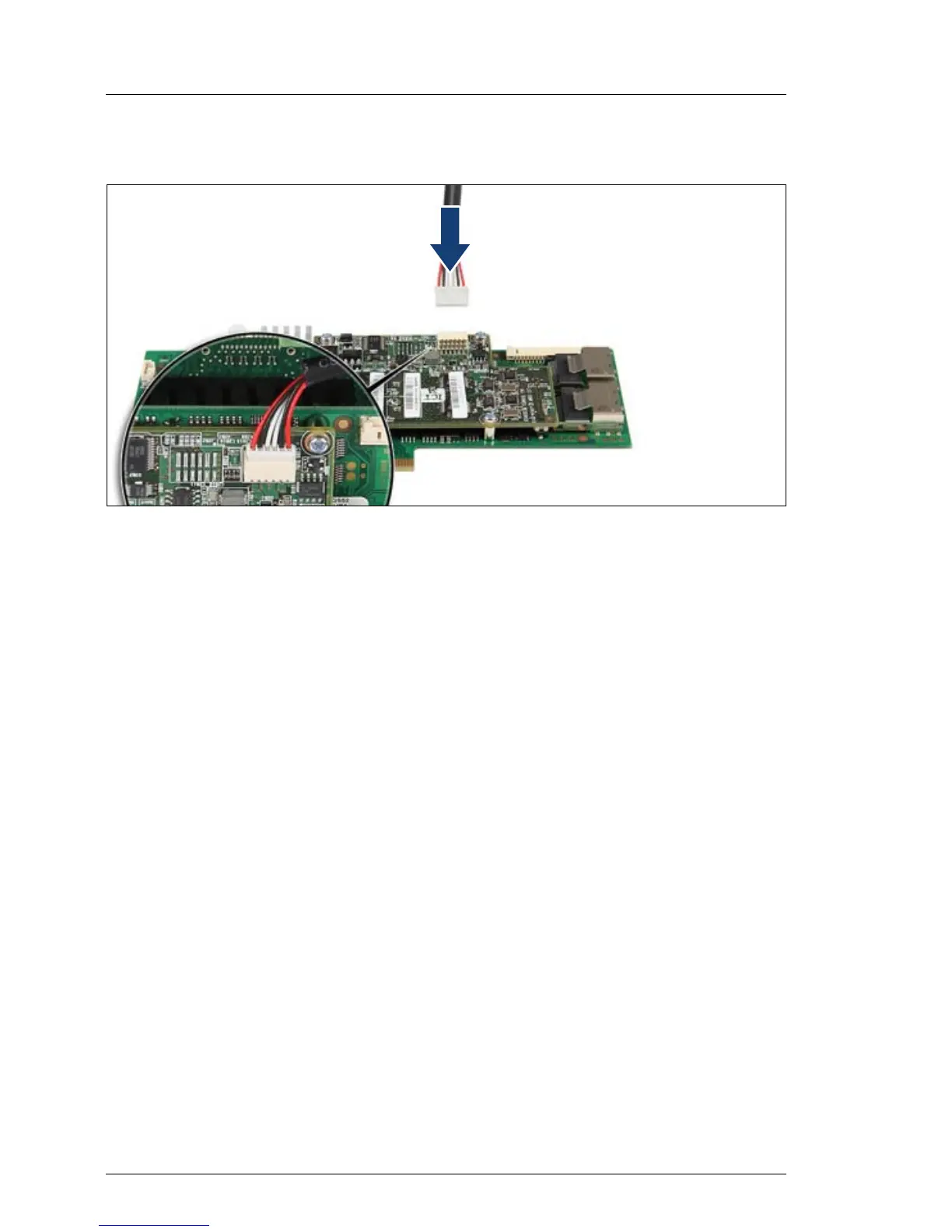

Figure 101: Connecting the FBU to the controller
Ê Connect the FBU cable to the TFM.
Ê Install the RAID controller with TFM as described in section "Installing
expansion cards" on page 150.
Ê Route the FBU cable in the same way as the BBU cable.
9.3.2.7 Concluding steps
Perform the following procedures to complete the task:
Ê
Check carefully the cable routing and close the cable clamps.
Ê Close the side cover as described in section "Installing the side cover" on
page 58.
Ê Reconnect the AC power cord to the power supply unit and secure it with a
cable tie as described in section "Connecting the server to the mains" on
page 59.
Ê If applicable, update the firmware of the RAID controller that has been
connected to the BBU as described in section "Updating RAID controller
firmware" on page 75.
