270 Upgrade and Maintenance Manual TX100 S3
Accessible drives
12.4.5 Replacing a backup drive
Ê Remove the defective backup drive as described in section "Removing a
backup drive" on page 262.

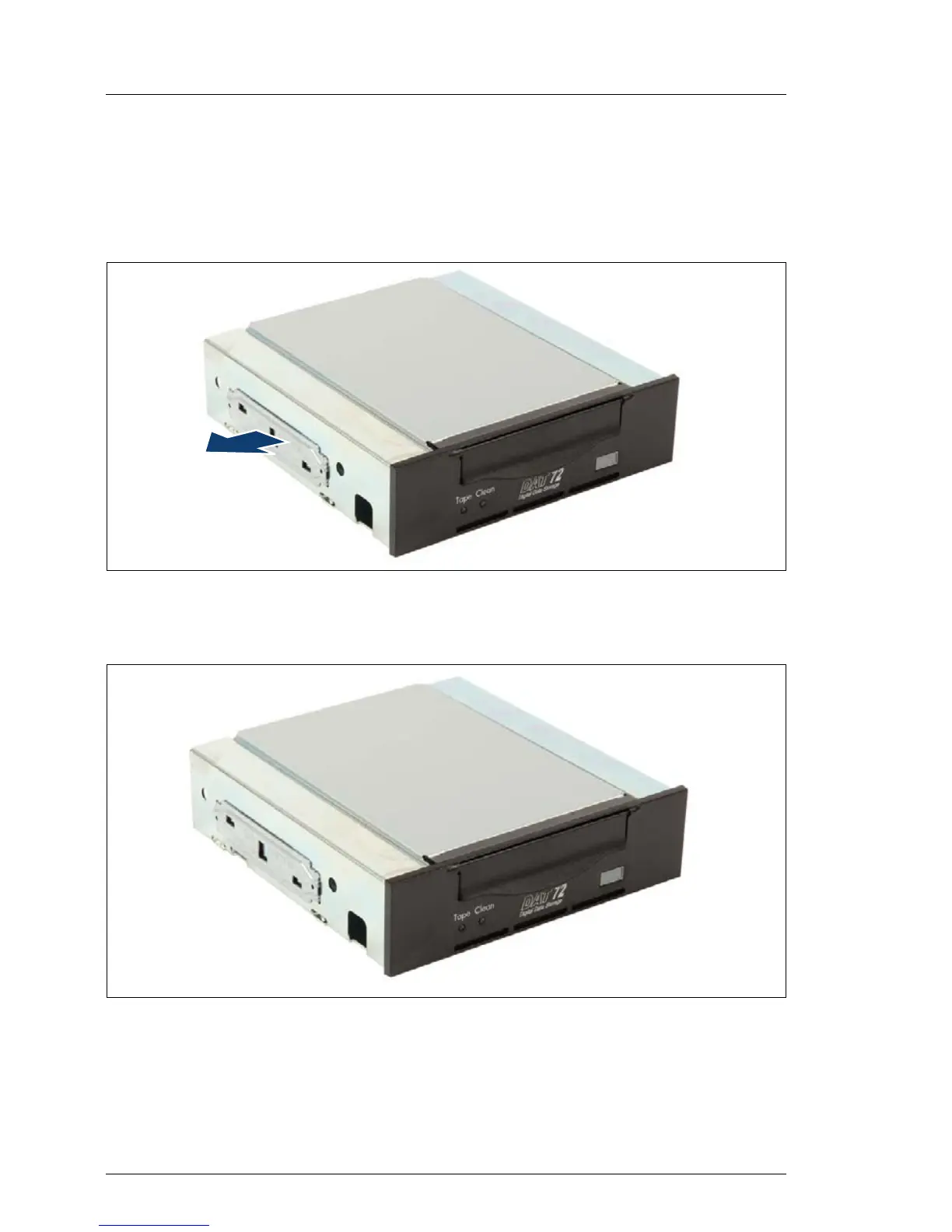

Figure 182: Removing the fixation plate
Ê Remove the fixation plate from of the left side of the backup drive.
Figure 183: Attaching the fixation plate to the backup drive
Ê Attach the fixation plate on the left side of the new backup drive.
Ê Install the new backup drive as described in section "Installing a backup
drive" on page 252.
