TX100 S3 Upgrade and Maintenance Manual 269
Accessible drives

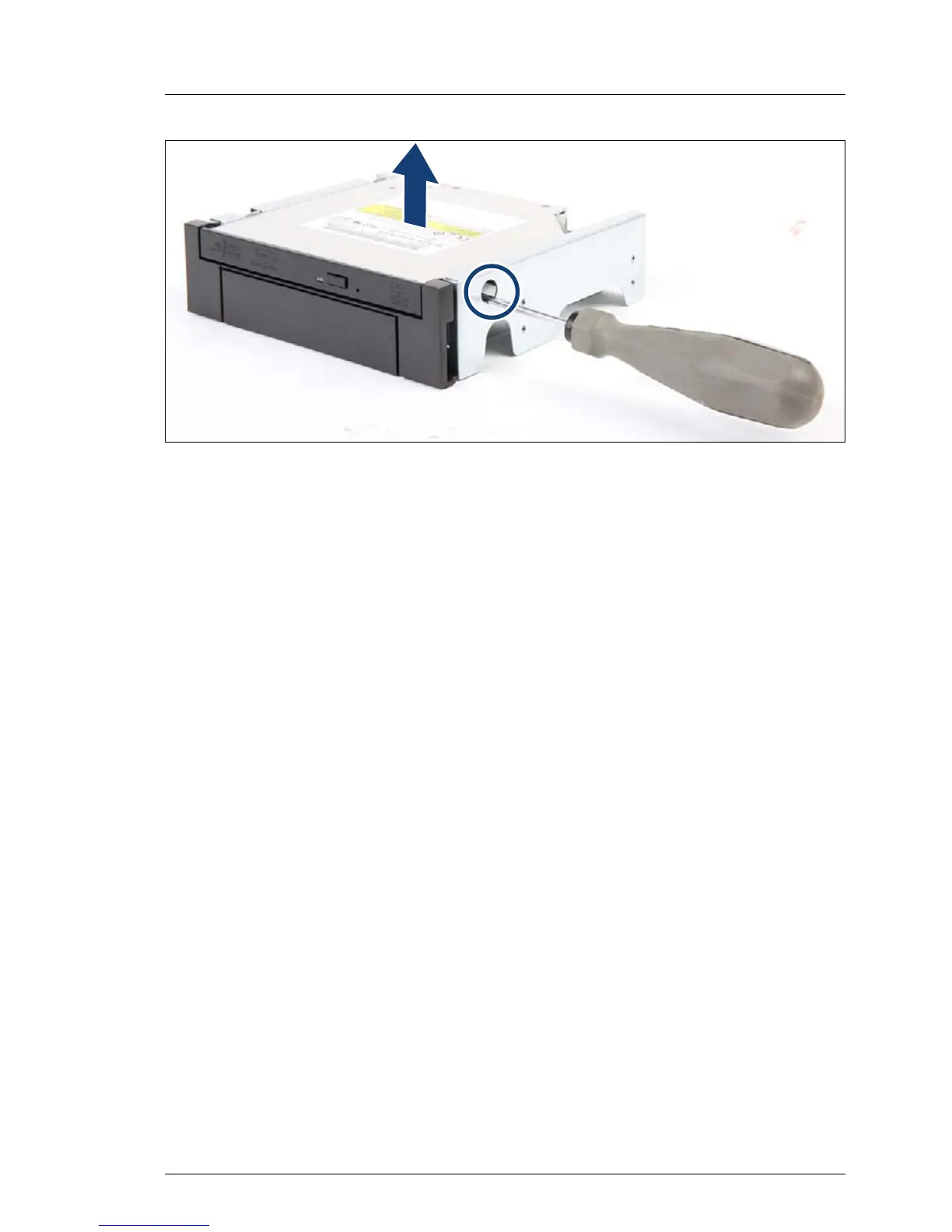

Figure 181: Removing the slimline ODD from the slide-in unit (B)
Ê Remove the M2 x 2.5 mm screw (C26192-Y10-C62) from the right side of
the slide-in unit.
Ê Remove the slimline ODD drive from the slide-in unit.
Ê Install the new slimline ODD as described in section "Installing a slimline
optical disk drive (ODD)" on page 245.
