TX100 S3 Upgrade and Maintenance Manual 123
Hard disk drives

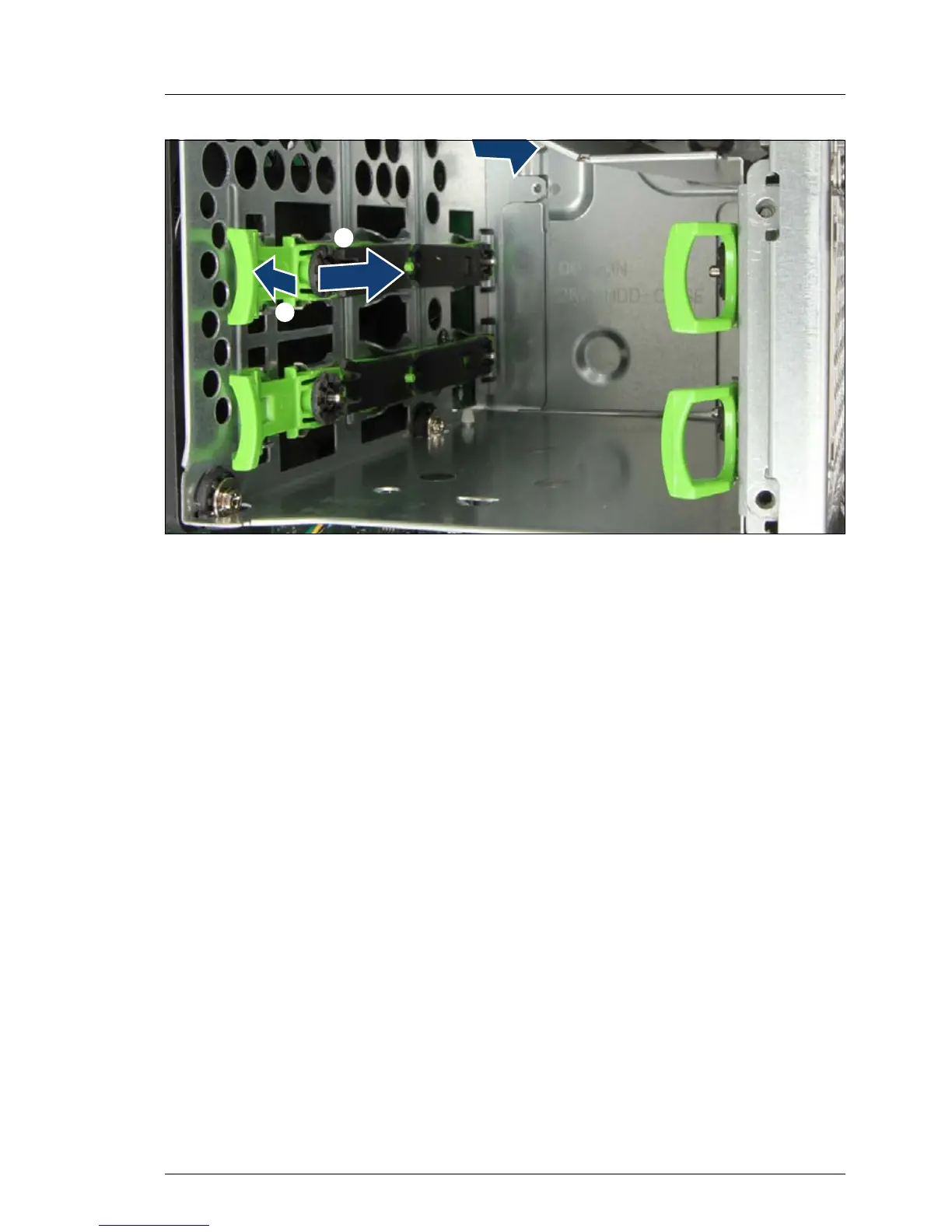

Figure 59: Inserting the Easyclick rails in the bay
Ê Push the Easyclick rails completely into the bay (1).
Ê Press the green handle outwards until it locks in place (2)
7.3.4 Concluding steps
Perform the following procedures to complete the task:
Ê Close the side cover as described in section "Installing the side cover" on
page 58.
Ê Reconnect the AC power cord to the power supply unit and secure it with a
cable tie as described in section "Connecting the server to the mains" on
page 59.
/
