TX100 S3 Upgrade and Maintenance Manual 205
Main memory
10.2.3 Installing a memory module
Ê Identify the correct memory slot according to the mounting order described
in section "Memory sequence" on page 202.

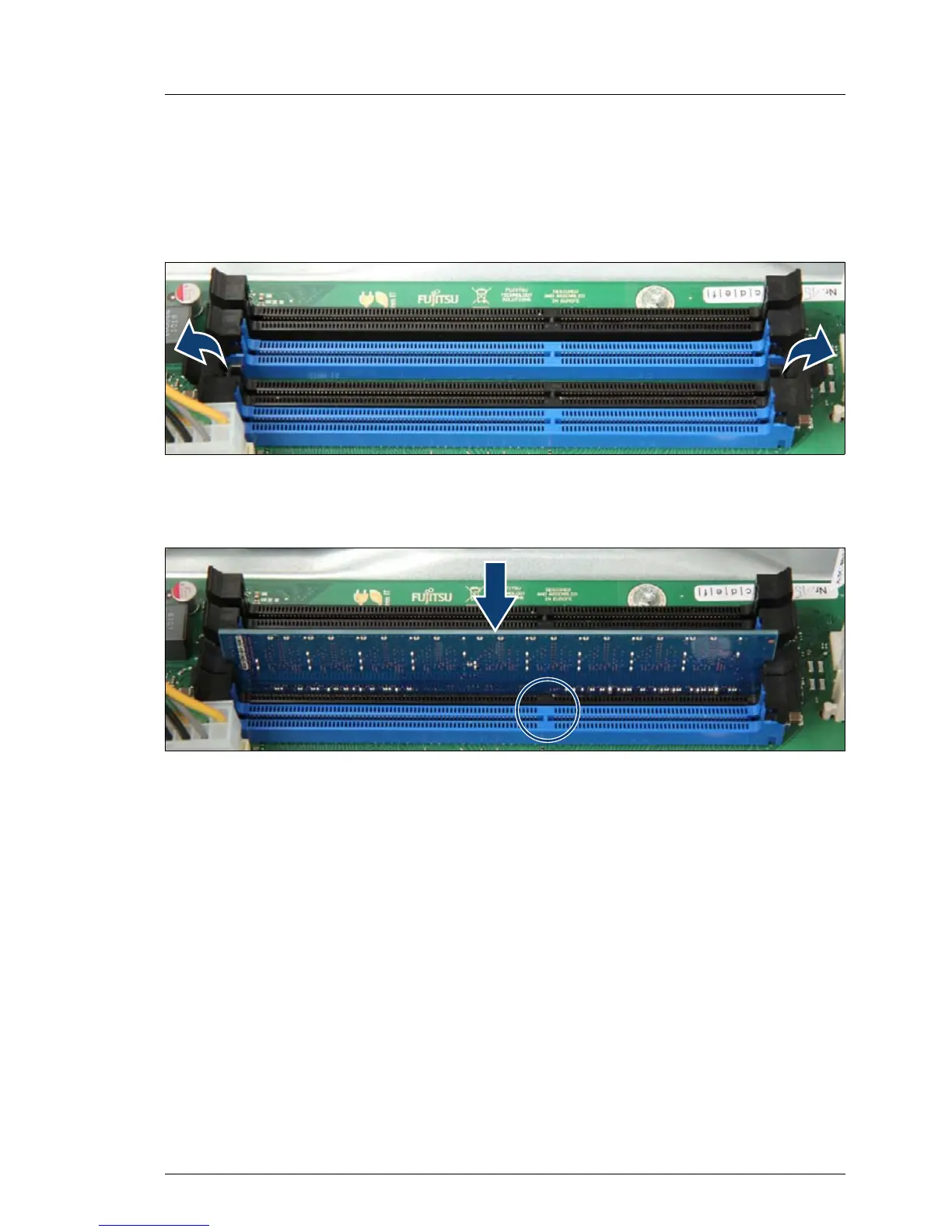

Figure 122: Installing memory modules (A)
Ê Press out the securing clip at each end of the memory module connector.
Figure 123: Installing memory modules (B)
Ê Align the notch on the bottom of the module with the crossbar in the
connector (see circle).
