216 Upgrade and Maintenance Manual TX100 S3
Processor

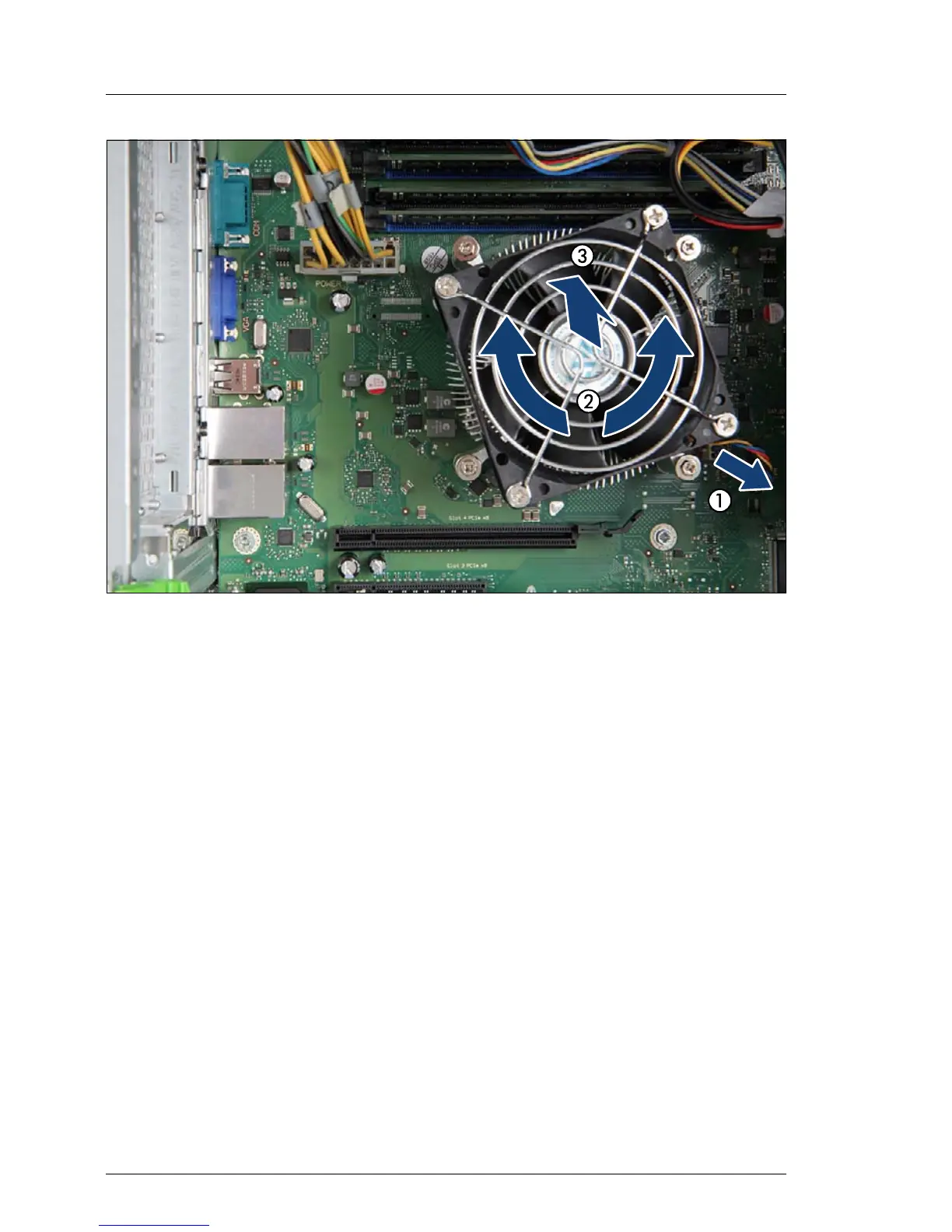

Figure 129: Removing the processor heat sink type B (B)
Ê Disconnect the heat sink fan connector from the system board connector
FAN CPU (1).
Ê Carefully turn the heat sink back and forth to detach it from the processor (2).
I This may be necessary due to the adhesive quality of the thermal
paste located between the heat sink and processor.
V CAUTION!
Pay special attention not to damage any system board components
surrounding the processor socket.
Ê Lift the heat sink out of the chassis (3).
Ê Thoroughly clean residual thermal paste from the surface of the heat sink
and the processor using a lint-free cloth.
