244 Upgrade and Maintenance Manual TX100 S3
Accessible drives

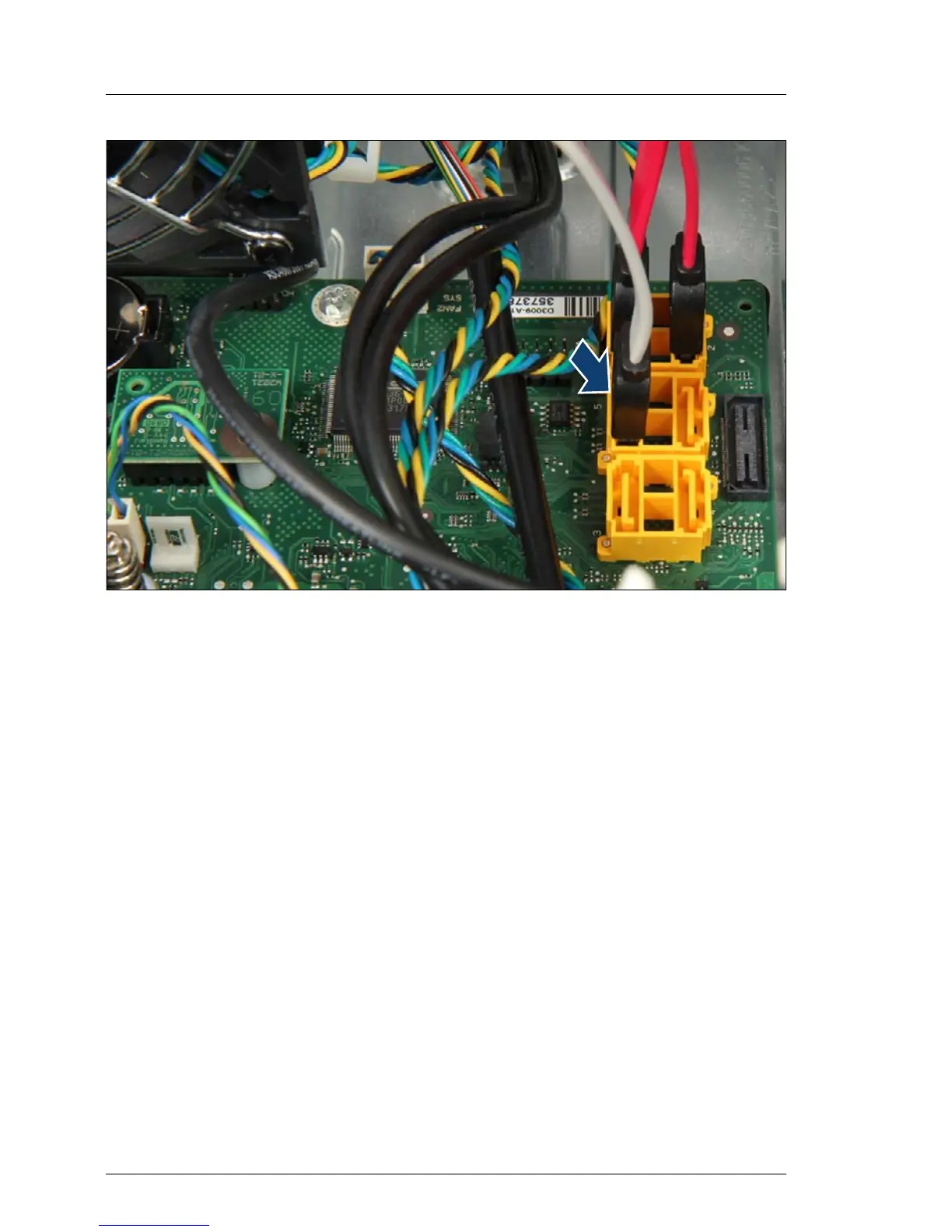

Figure 153: Routing optical disk drive cables
Ê Connect the SATA cable to connector SATA 5 on the system board.
Ê Route the SATA cable below system fan 1.
