176 Upgrade and Maintenance Manual TX100 S3
Expansion cards and backup units

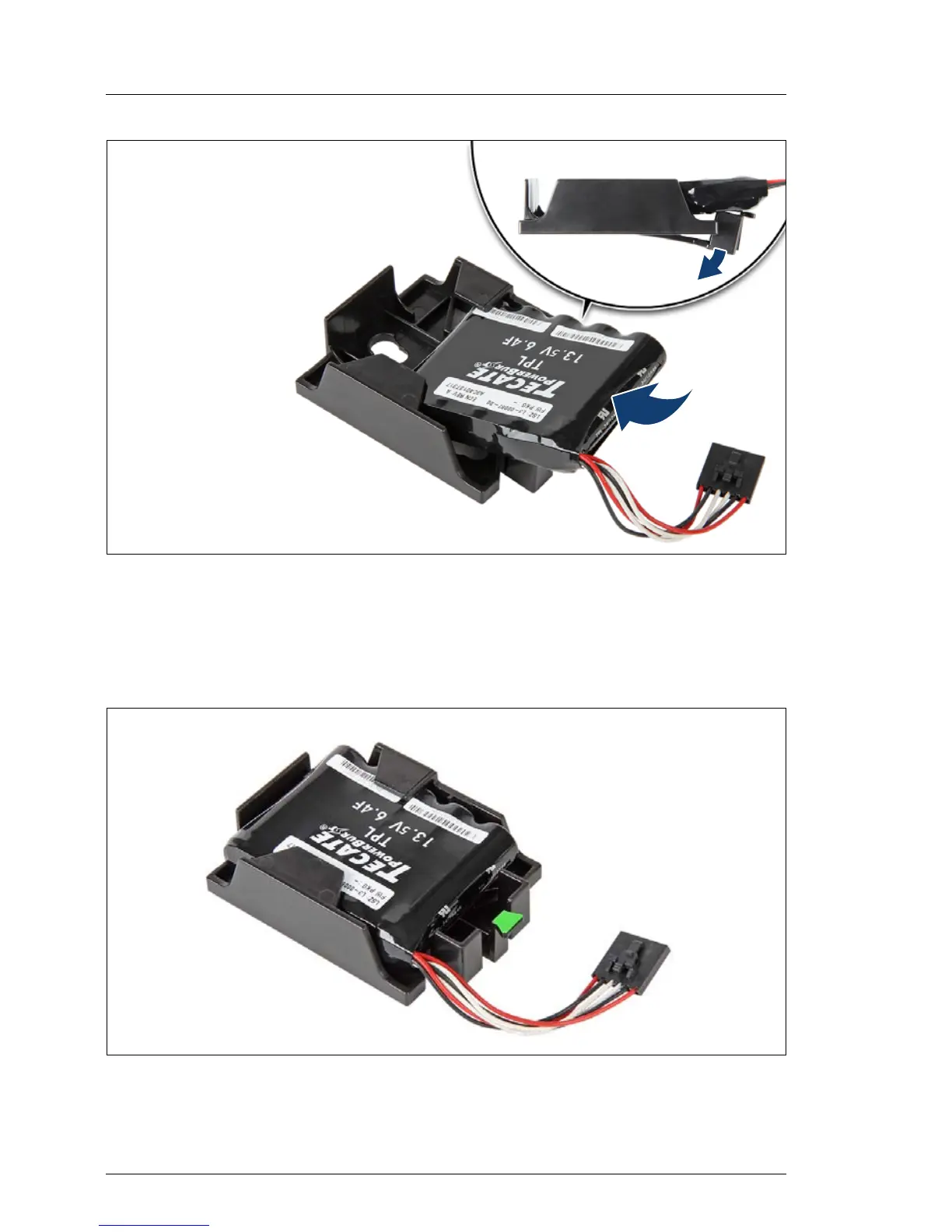

Figure 98: Installing the FBU in the FBU holder (A)
Ê At a slight angle, fit the FBU under both retaining brackets of the FBU holder
as shown.
Ê Push in the FBU until it locks in place.
Figure 99: Installing the FBU in the FBU holder (B)
Ê Ensure that the FBU is properly seated in the FBU holder as shown.
