TX100 S3 Upgrade and Maintenance Manual 285
Front panel and external connectors

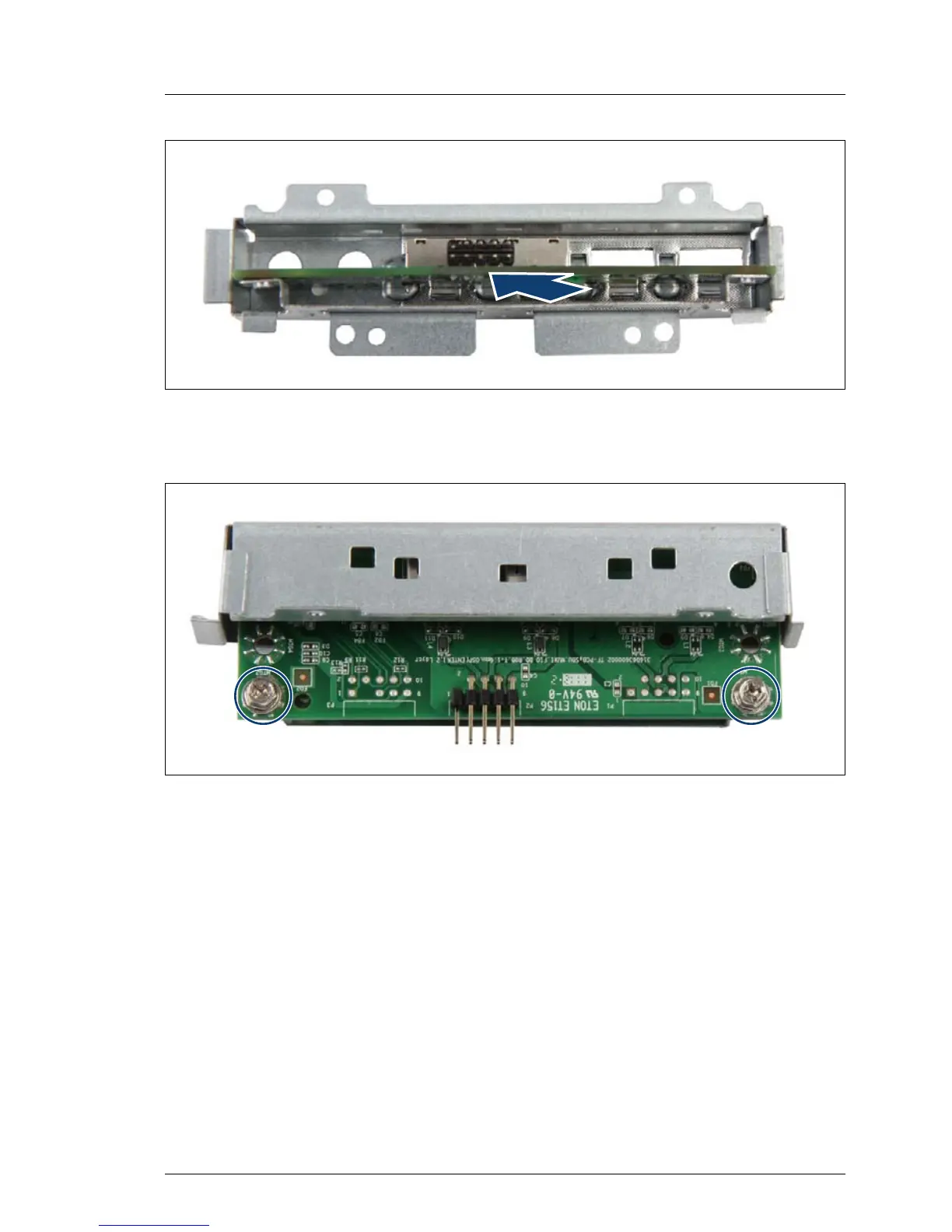

Figure 197: Installing the front USB board into the carrier (A)
Ê Push the new front USB board in the carrier.
Figure 198: Installing the front USB board into the carrier (B)
Ê Secure the new front USB board with two screws (see circles).
