Fujitsu PRIMERGY TX100 S3

TX100 S3 Upgrade and Maintenance Manual 109
Hard disk drives

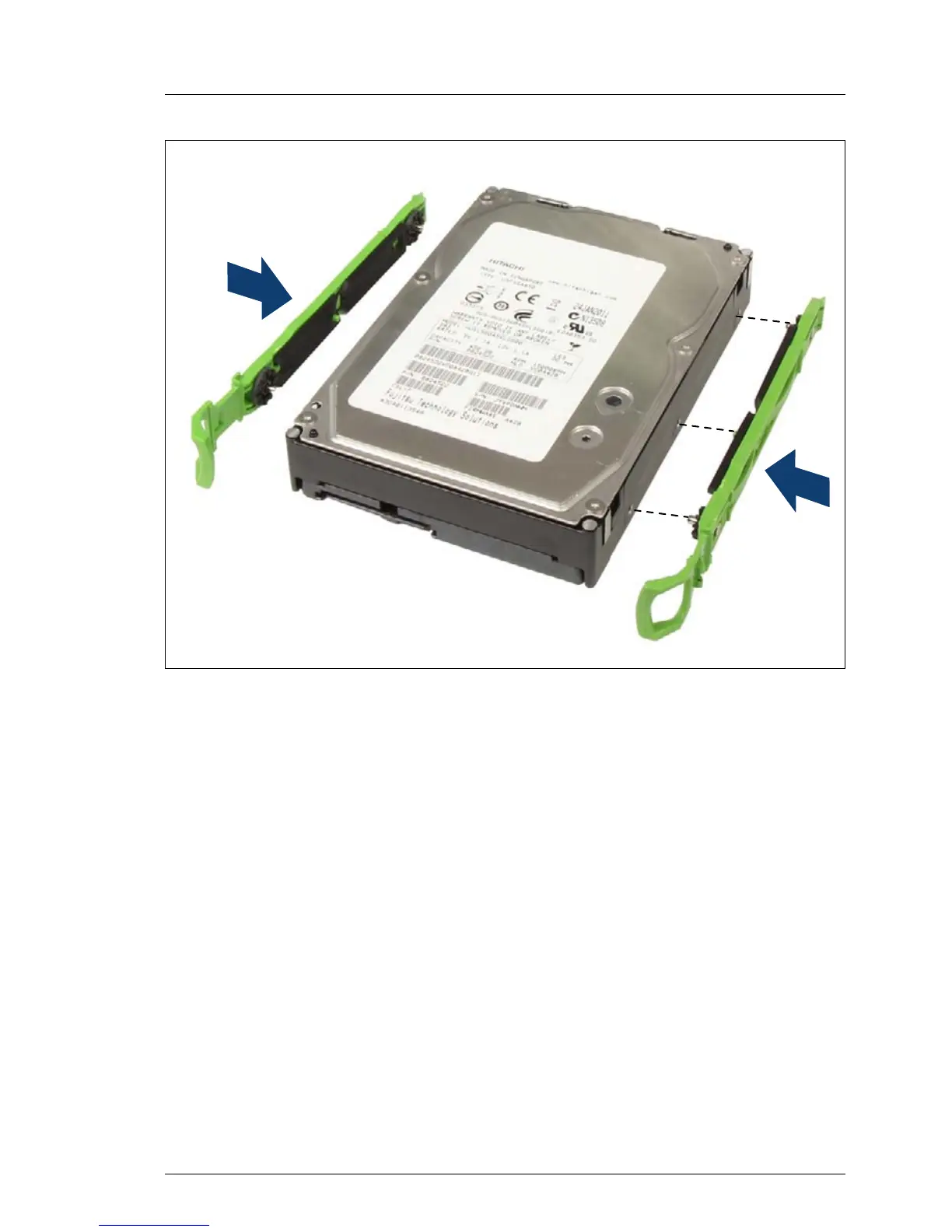

Figure 45: Aligning the Easyclick rails
Ê Align the three pins on the Easyclick rails with the screw holes on the new
hard disk drive.
