120 Upgrade and Maintenance Manual TX100 S3
Hard disk drives

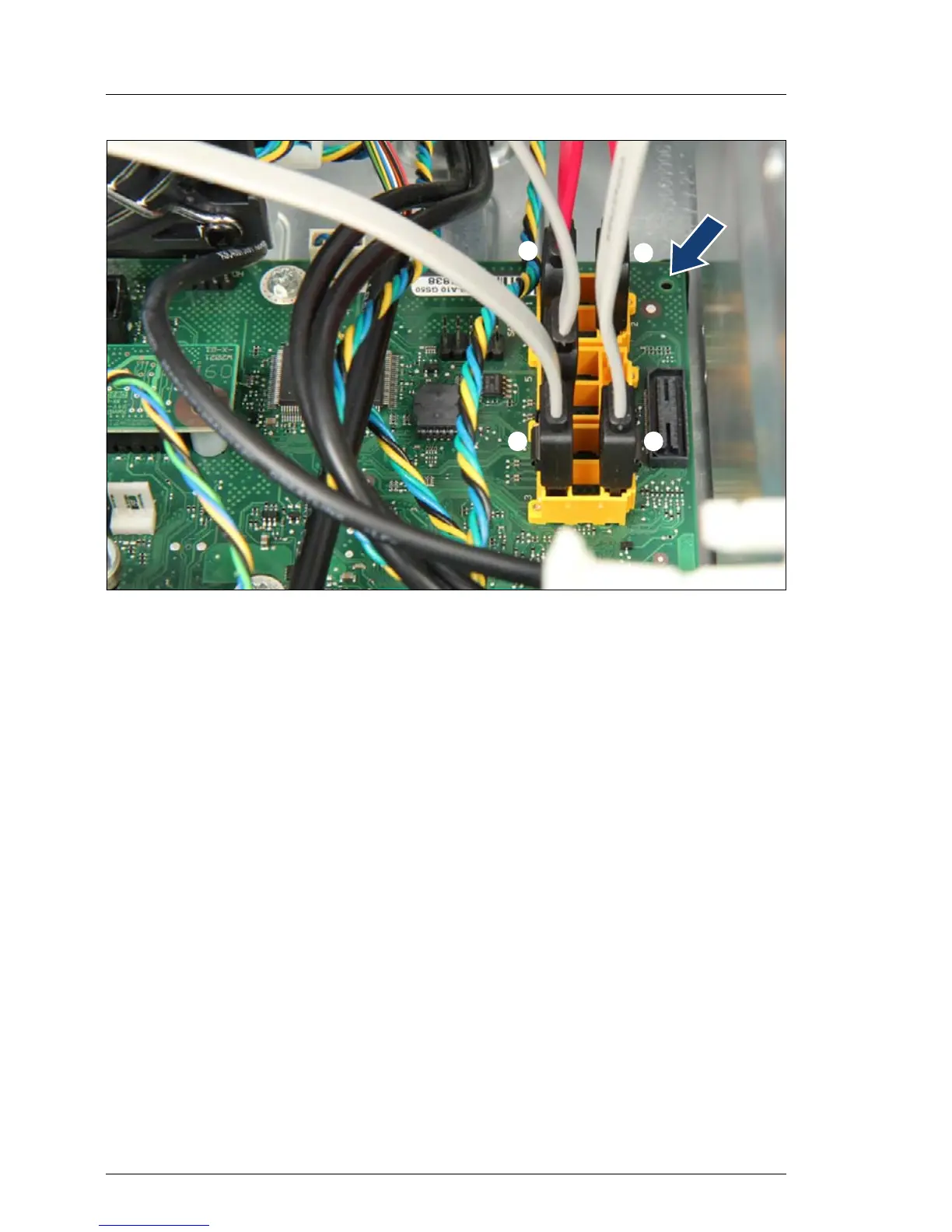

Figure 56: Disconnecting SATA cables from the system board
Ê Disconnect the corresponding SATA cable(s) from the system board.
I Push the edge (see arrow) of the system board with the finger to
avoid bending up the system board.
1 SATA cable to connector SATA 1
2 SATA cable to connector SATA 2
3 SATA cable to connector SATA 3
4 SATA cable to connector SATA 4
Ê For further cabling information, please refer to section "Cabling" on
page 321.
/
