136 Upgrade and Maintenance Manual TX100 S3
System fan modules

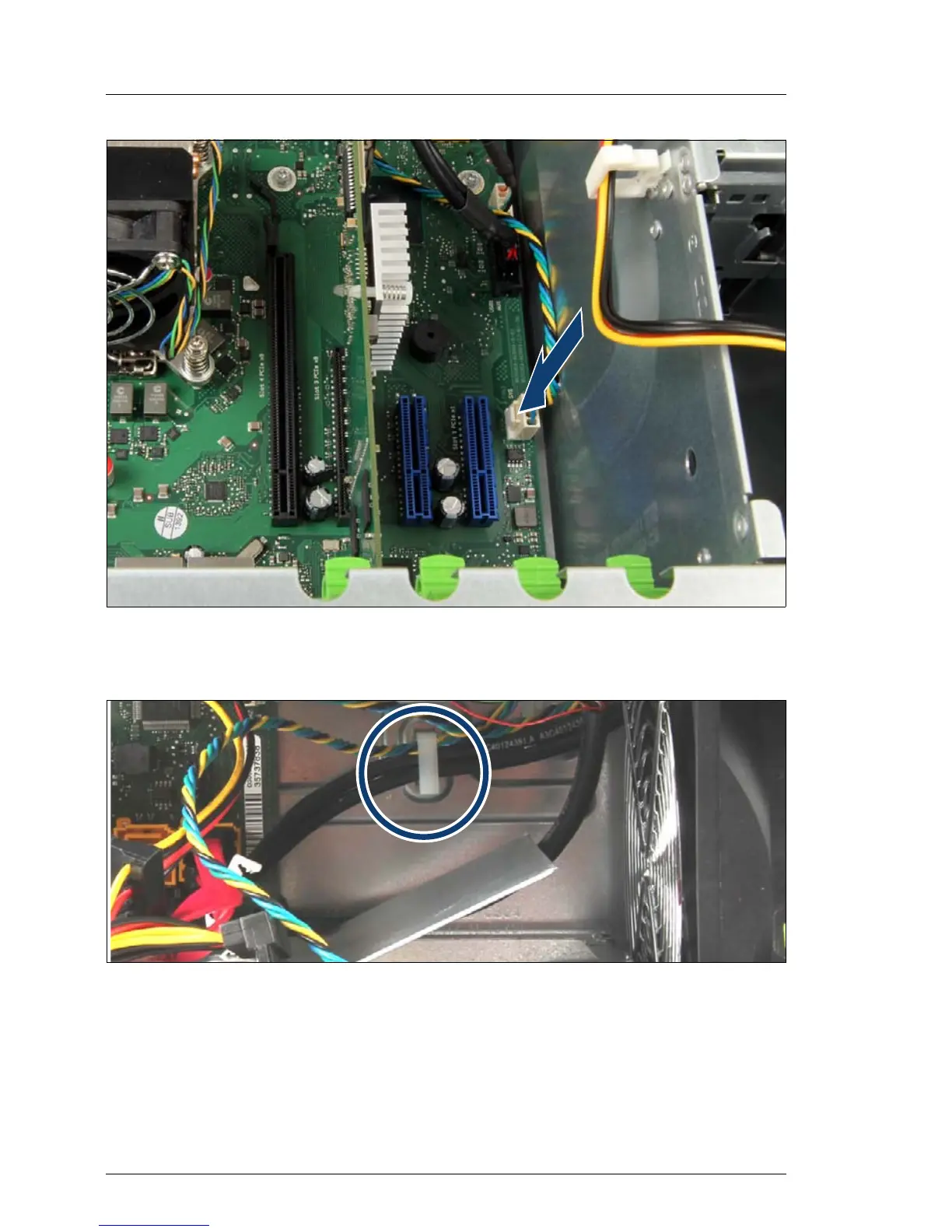

Figure 68: Connecting the fan cable
Ê Connect the fan cable to system board connector FAN1 SYS.
Figure 69: Cable clamp of the fan cable
Ê Open the cable clamp and insert the fan cable.
