144 Upgrade and Maintenance Manual TX100 S3
System fan modules

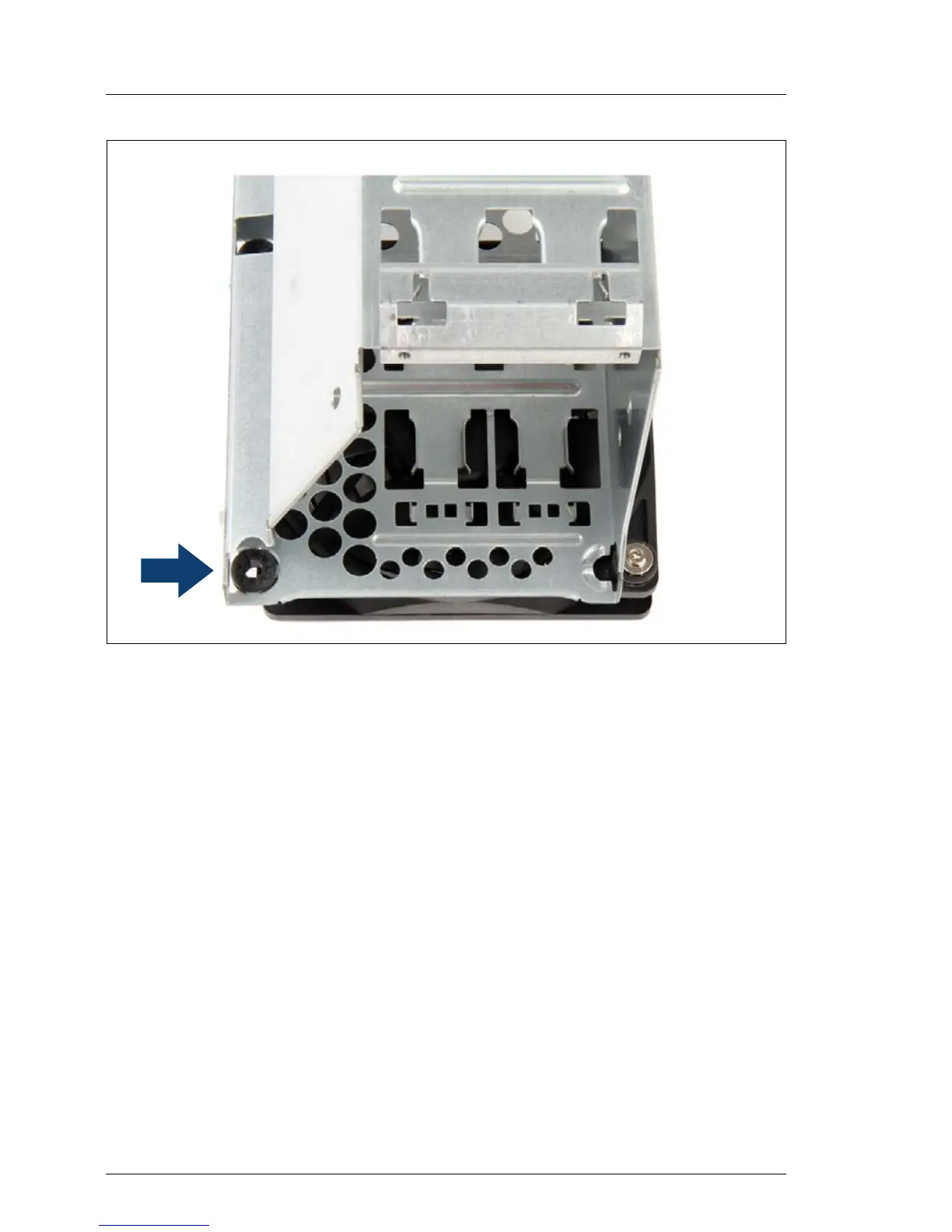

Figure 75: Pushing the HDD cage over the system fan module 2
Ê Slide the HDD cage in the direction of the arrow as far as it will go.
I Check the correct position of the bushings.
The bushings remain at the HDD cage. It is not necessary to remove
them.
Take care that the bushings are not shifted while the HDD cage is slided.
