196 Upgrade and Maintenance Manual TX100 S3
Expansion cards and backup units
Network adapter D2755

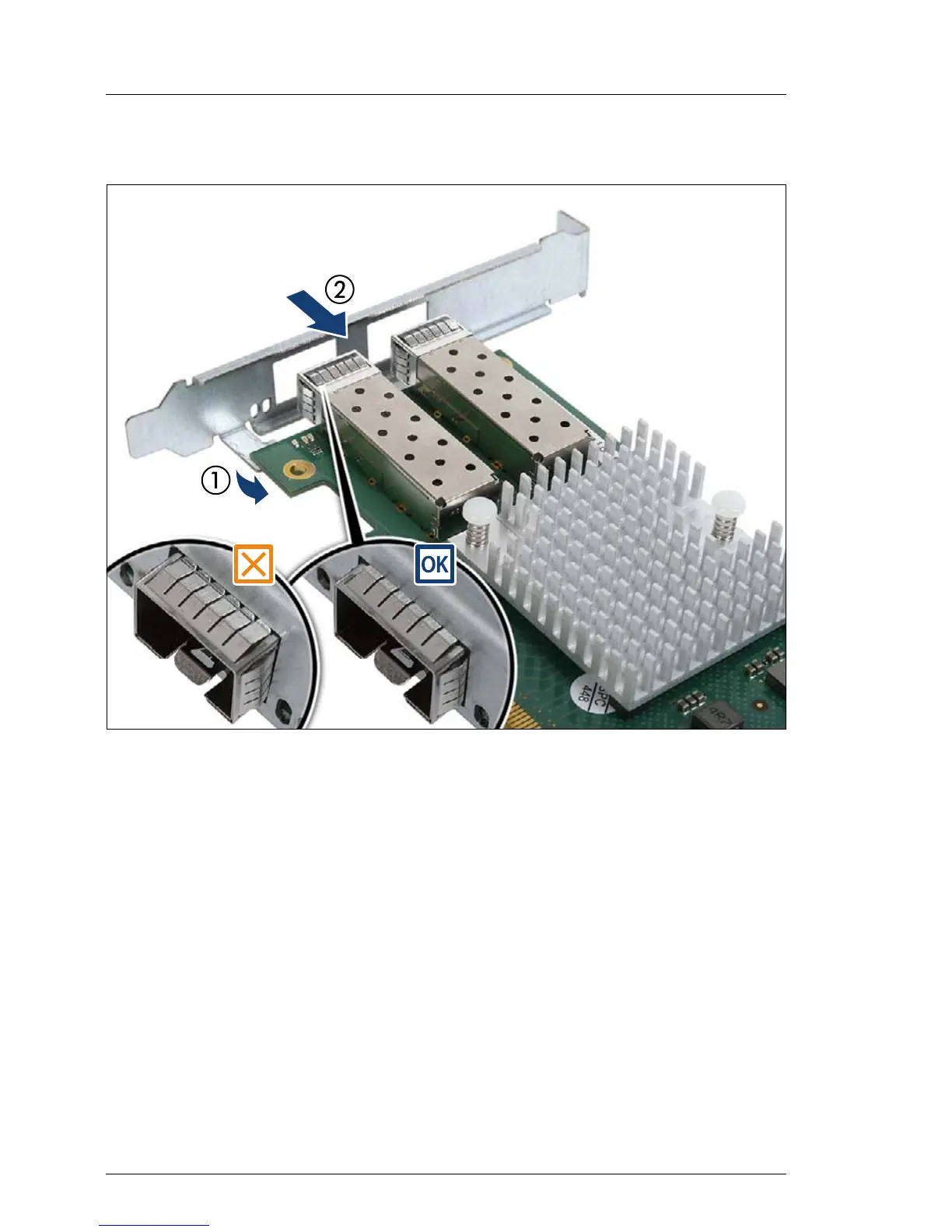

Figure 116: Network adapter D2755 - Mounting the slot bracket (A)
Ê Place the controller on the mounting tabs on the slot bracket (1).
Ê Carefully shift the slot bracket towards the controller until the plug shells
engage with the cut-outs in the slot bracket connector panel (2).
Ê Ensure that the ESD springs on the plug shells properly engage with the slot
bracket as shown (see close-ups).
