Fujitsu PRIMERGY TX100 S3

248 Upgrade and Maintenance Manual TX100 S3
Accessible drives

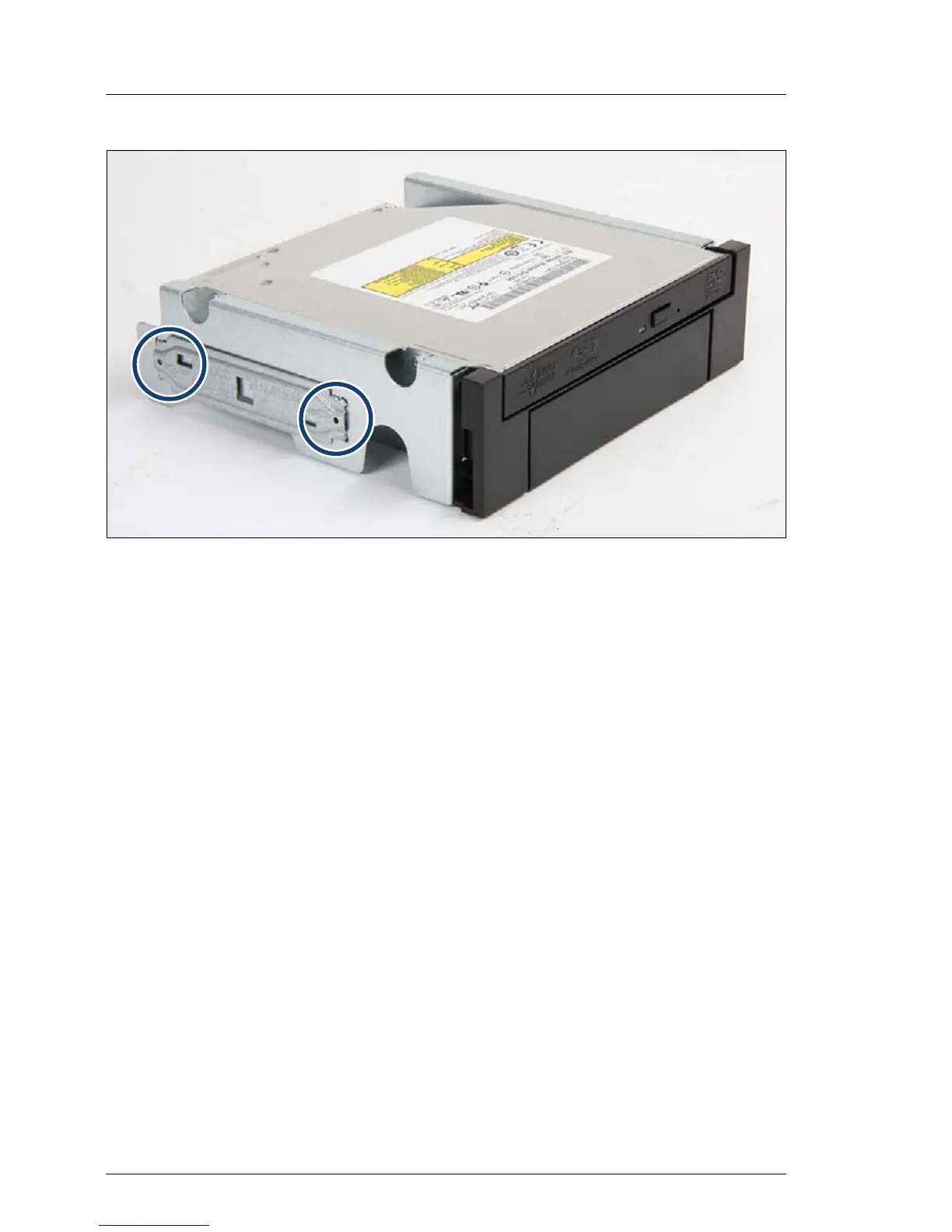

Figure 158: Attaching the fixation plate to the slide-in unit
Ê Align the four pins on the fixation plate with the screw holes on the left side
of the slide-in unit and attach it.
