250 Upgrade and Maintenance Manual TX100 S3
Accessible drives

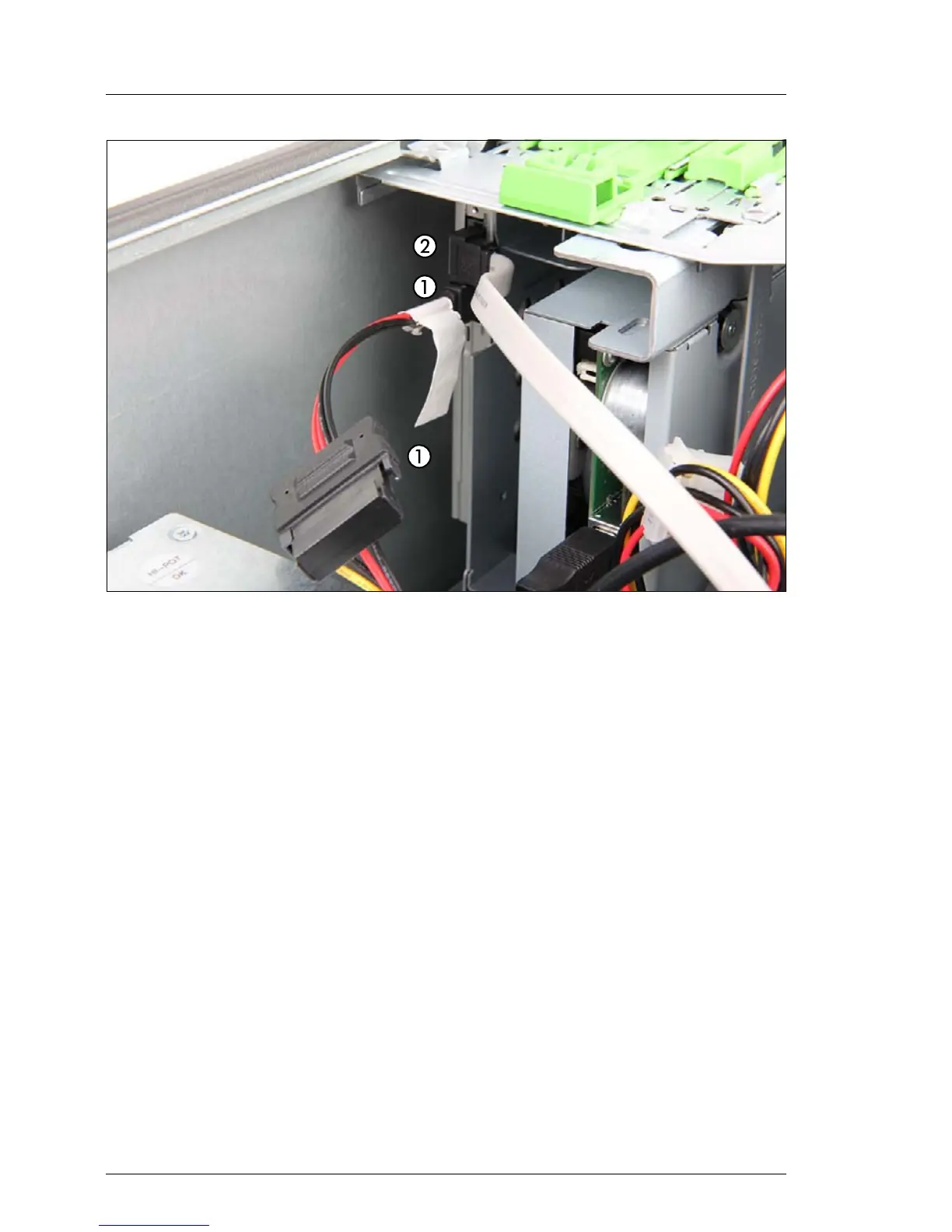

Figure 160: Connecting cables to the slimline optical disk drive
Ê Connect cables to the optical disk drive.
1 Power adapter cable (T26139-Y3990-V201) to the power cable
connector P8 (see figure 227 on page 329) and the slimline drive
2 SATA cable
