TX100 S3 Upgrade and Maintenance Manual 255
Accessible drives

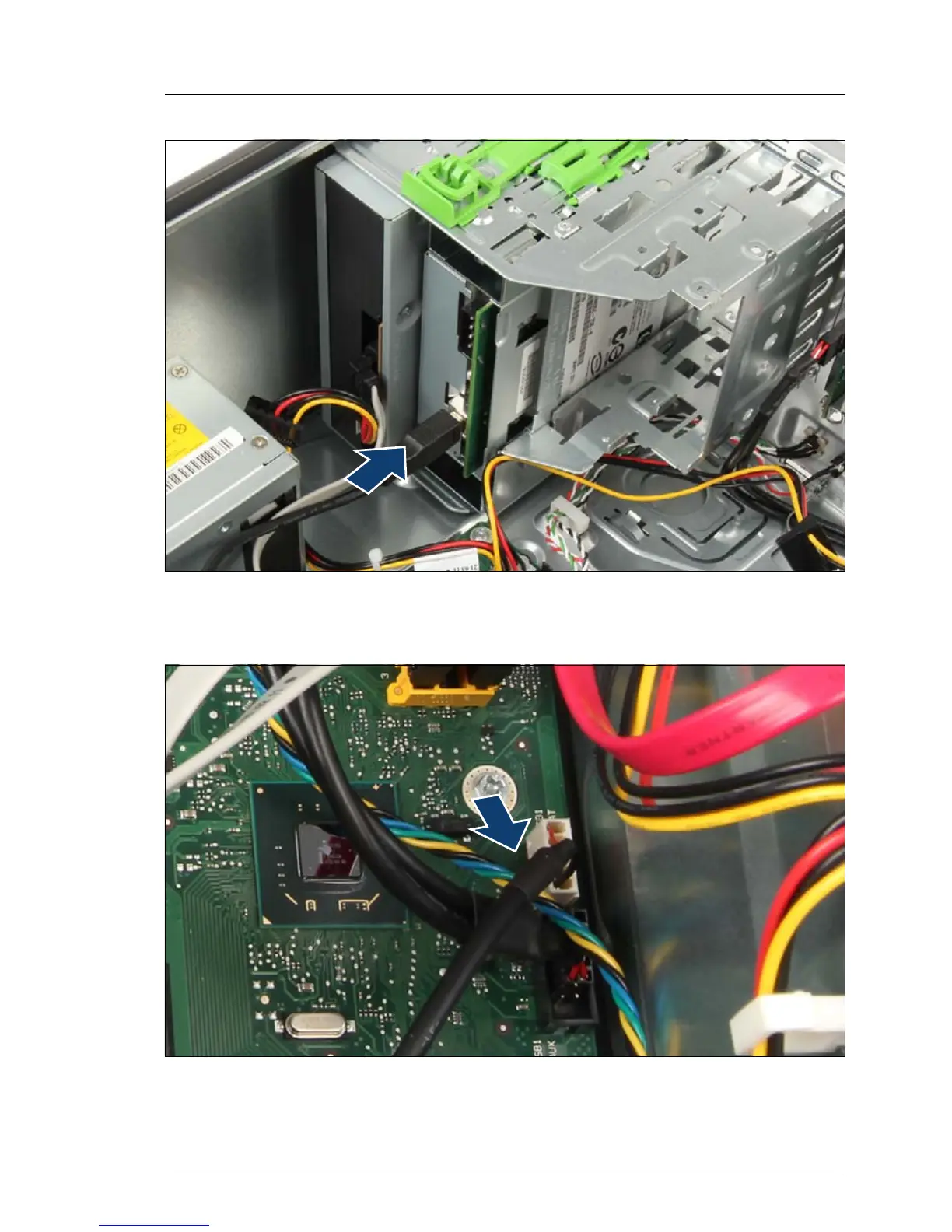

Figure 166: Connecting USB 2.0 cable to the backup drive
Ê Connect the USB 2.0 cable to the backup drive.
Figure 167: Connecting USB 2.0 cable to system board
Ê Connect the USB 2.0 cable to connector USB DAT on the system board.
