TX100 S3 Upgrade and Maintenance Manual 295
System board and components

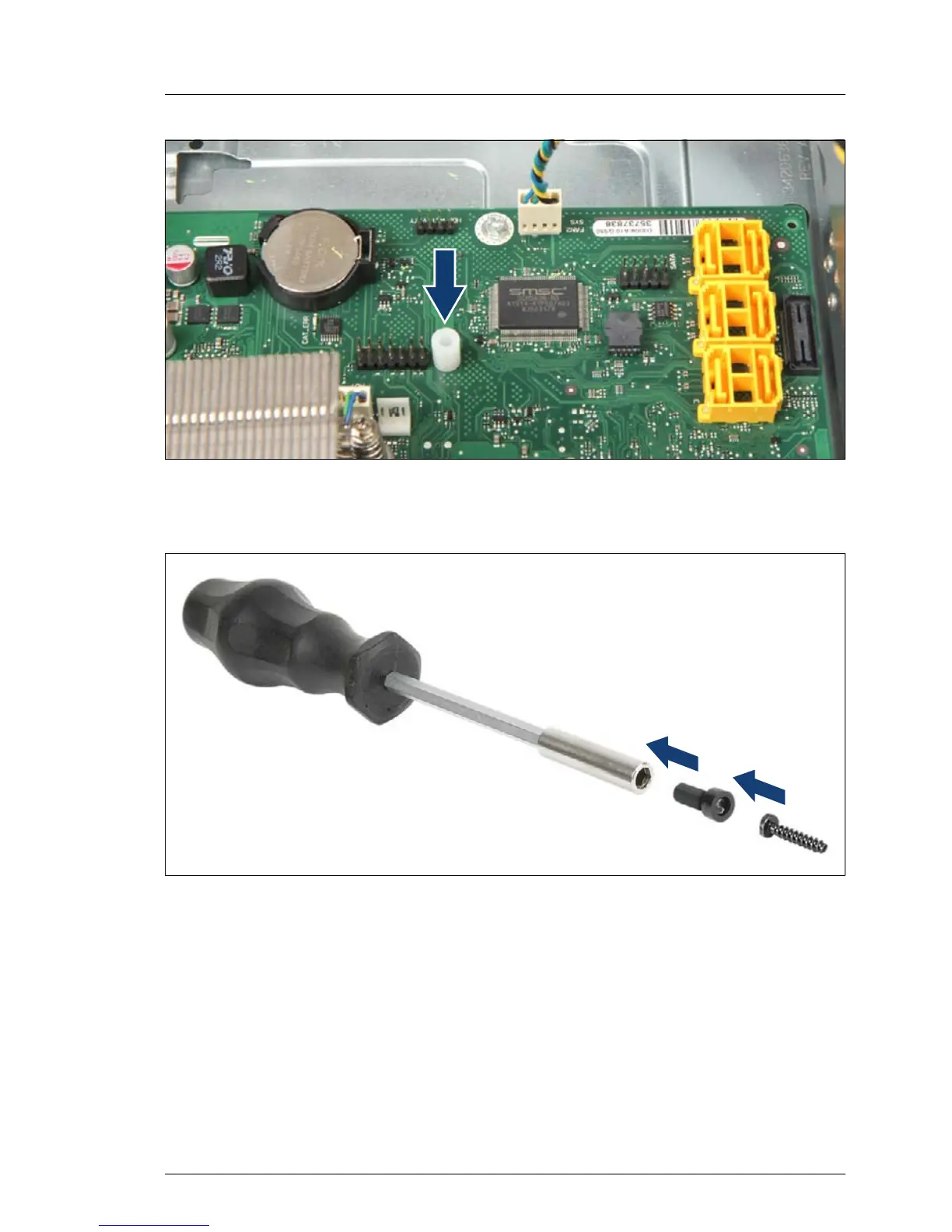

Figure 204: Installing the TPM spacer
Ê Snap the TPM spacer into the cut-out in the system board.
Figure 205: TPM bit insert
Ê Attach the TPM bit insert or TPM module fixing tool (Japanese market) to a
bit screw driver.
